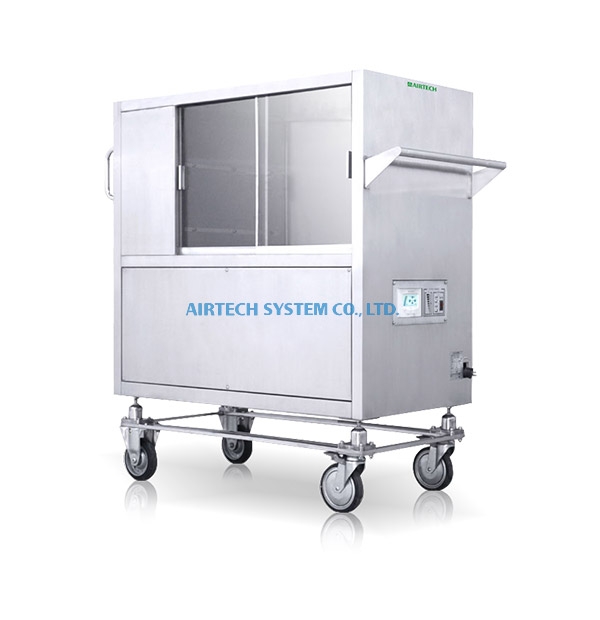

Laminar Flow UPS Storage Cart
Description


Laminar flow UPS storage cart on the move often high clean room, to prevent the product or project in cleanroom contamination during transfer. A shock absorber system between the main body and the casters protects the materials against impacts of vibration during the moving process. With the air velocity sensor and LED indicator, the laminar air flow condition can be monitored. Two hours' operating time after the UPS has been charged for ten hours.



·     The horizontal laminar air flow design ensures a high level of cleanliness inside each partition in the cabinet.


·     A shock absorber system between the main body and the casters protects the materials against impacts of vibration during the moving process.


·     The shelf board in each partition is made of perforated stainless steel. This prevents turbulence, which will affect the cleanliness inside the cabinet.With the air velocity sensor and LED indicator, the laminar air flow condition can be monitored.


·     With large casters, moving the cart is not a hard work for any personnel.


·     Side panels of the cabinet are made of static-dissipative PVC to prevent impacts of electrostatic discharge.


·     With the air velocity sensor and LED indicator, the laminar air flow condition can be monitored.


·     The product provides a clean space for mate'rials to be moved. The cleanliness level in the cabinet is kept above ISO Class 5 (≒ Class 100).


·     Available options include "chemical filter" which can fight against pollutants such as acids, alkalis, and microorganisms, and "PTFE filter" which has extreme low outgassing, is boron-free, and resists corrosion.


Model Laminar flow storage cart with UPS
Cleanliness ≧ISO CLASS 5(CLASS 100 FED.STD.209D)
Efficiency Above 99.97% Efficient On 0.3µm Particles
Main filter HEPA / ULPA
Air volume(CMM) 11
Air velocity(m/s) 0.6
Power consumption(VA) 1100
Power AC110V 1Φ 60Hz
2 hours' operating time after the UPS has been charged for 10 hours
Dimensions 600(W)x1,100(D)x1,300(H)
Main structure Stainless steel (SUS304) with antistatic plastic sliding door
