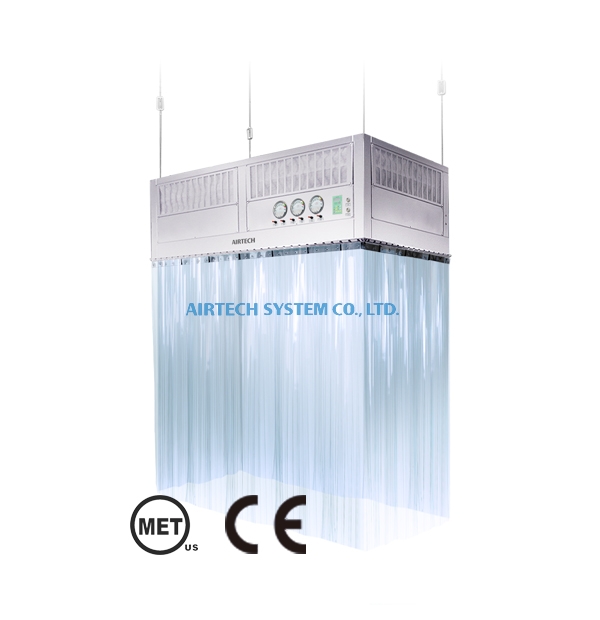

UL listed Clean Booth
Description

Clean booths are used for either localized or advanced particle cleaning to achieve cleanroom standards.  Our Standard Clean Booth is made from a robust aluminum extrusion frame structure that is easy to clean and maintain.  It also comes with a differential pressure gauge which gives an indication if it is time to replace the filter. Our clean booths are highly customizable; we are able to custom build it for you based on your preferred dimension as well as the cleanroom rating you wish to attain.

*Complies with UL&CE certification.



·      Highly configurable, can be tailor fitted to client’s required cleanliness level/grade.



·      Rigid aluminum extrusion frame structure.



·      Highly customizable frame dimension.   We can manufacture based on your required specifications.



·      Fitted with durable, anti-static, transparent, and flexible PVC curtains.

Model
Cleanliness ISO CLASS 6 (CLASS 1K)
Particle Efficiency Above 99.99% Efficient On 0.3µm Particles
Main Filter HEPA Filter
Air Volume (CMM) 56
Air Changes (hour) 184Times
Illumination LED 20W
Construction Framework: Aluminum extrusion
FFU: Stainless plate baked Painting or Galvanized iron
Electrical AC 1Φ220V 60Hz
Power Consumption (VA) 560
