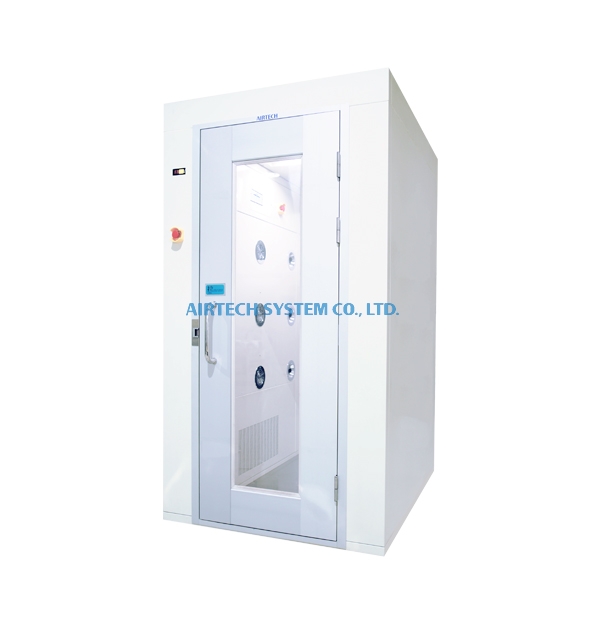

Cleanroom Mist Air shower
Description
The superb energy-saving air shower brings out ultra-clean air. Air is forced by the blowers through HEPA filters which are 99.99% efficient against particles of 0.3 microns. The air jets at the velocity of 23 m/s to ensure efficient scrubbing action to remove particulate matter.

·    Function: particle elimination, disinfection, deodorization.

·    Particle elimination working time: 15 seconds ; disinfection & deodorization working time: 5 seconds.

·    Liquid will be atomized and sprayed evenly in the Air shower area.

Model AAS-0810EARC-1.5
Particle Efficiency Above 99.99% Efficient On 0.3µm Particles(HEPA)
Above 99.999% Efficient On 0.1µm Particles(ULPA)(optional)
Pre-filter Non-woven filter
Main filter HEPA filter / ULPA filter(optional)
Nozzle Qty. 20pcs
Spray nozzle Qty. 6pcs
Air velocity (m/s) About 23
Air volume (CMM) About 19.5
Air change (time/hour) 487
Base SUS304
Construction Cold-rolled steel with baked painting/SUS304(optional)
Color Ivory、pearl white(optional)
Power supply AC 3Φ220 50/60Hz
Inductive control Photo-electric sensor
LED illumination(W) 10x1
Spray system(optional) 1. Spray nozzle
2. SUS304 tank
3. air compressor 5~7kg/cm2

proimages/drawing/air-shower/mist_air_shower_1024x768px_en.png
