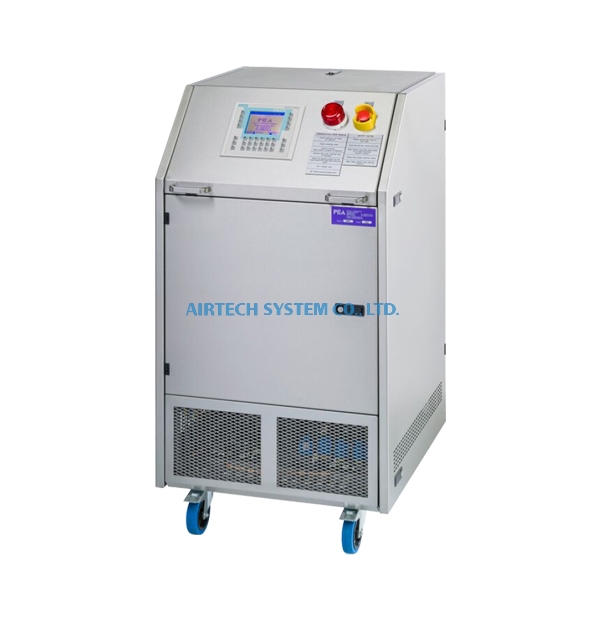

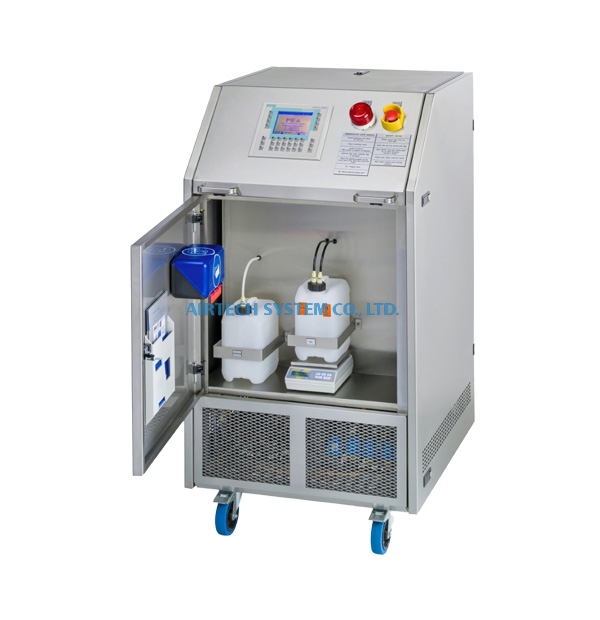

Hydrogen Peroxide Sterilizers (Gas Generator)
· Large capacity (H2O2) gas generator in terms of volume coverage. Capable of broad-spectrum antimicrobial bio-decontamination. An All-in-one system operates as a standalone unit.
· Suitable for use in largely restricted access barrier systems (RABS), isolators, and rooms of up to 600m³ in size.
· Has an airflow rate of 50-200m³/hr.
· Encased in a stainless steel body.
· Short decontamination time.
· Utilizes a HEPA filter, making it capable of particle decontamination as well.
· Capable of continuous decontamination. Operates without the need to regenerate dehumidifying agents.
· Can be connected to an external printer.
Model | MLT19 | MLT19ii | Zeta | ||||||
---|---|---|---|---|---|---|---|---|---|
Gassing volume capacity | 0.1 m³ up to >600m³ | 1 m³ to 100m³ | 30 m³ up to 2000m³ | ||||||
Dimension | 770 x 1400 x 1000 mm | 700 x 710 x 880 mm | 770 x 1200 x 750 mm | ||||||
Electricity | 230V, 50/60 Hz, 16A | 230V, 50/60 Hz, 16A | 208-240V, 50/60 Hz, 16A other voltages optional on request |
||||||
Weight | approx. 250kg on smooth-running wheels | 120kg | approx. 260kg on smooth-running wheels | ||||||
PLC | Siemens/Vipa PLC S7-1500 | ||||||||
HMI | HMI Siemens TP 700 comfort | ||||||||
HEPA Filter | Inlet filter: EU14, difference pressure monitoring | N/A | |||||||
Humidity and temperature measurement | Cooling and conditioning system with temperature monitoring | Optional | |||||||
Fan | Fan, 20-80m³, airflow regulation and monitoring | Blower (20-70m³), airflow monitoring | Fan, 50-200m³, airflow regulation and monitoring | ||||||
Catalytic Converter | Switchable 3-way-catalytic converter for the reduction of the hydrogen peroxide concentration | Catalytic converter (Platinum/Aluminium oxide) for the reduction of the hydrogen peroxide concentration3-way catalyst (400cpsi) | 3 communication interfaces for the mobile PEA Gas Distribution System LiRo | ||||||
Dehumidifying system | Two-stage dehumidifying system, temperature monitored | One-stage dehumidifying system, temperature monitored | N/A | ||||||
Heater, temperature regulation with temperature monitoring. Vortex chamber, temperature regulation with temperature monitoring | |||||||||
Scale | Electronic scale, 15kg, d=0.5g | PCE, 15kg, d=0.5g | Electronic scale, 15kg, d=0.5g | ||||||
Dosing Accuracy | Hydrogen peroxide container, 5l Dosage 0.5-12g/min with step motor peristaltic pump for accurate dosing incl. priming valve, auto-adjusting dosing rate and supervised | Dosage 0.1-12.0g/min with suction valve for accurate dosing | Hydrogen peroxide container, 10l Dosing 3.0-30.0g/min with step motor peristaltic pump for accurate dosing incl. priming valve, auto-adjusting dosing rate and supervised | ||||||
Condensate container | Condensate container, 5l | Condensate bottle, 5l | |||||||
Programs | Up to 200 configurable programs, Extensive parameterization options | ||||||||
Printout | Detailed batch printout incl. measure value trends alternative: Ethernet printer/USB printer/ PDF format on SD card | ||||||||
File management | File management for copying from SD card to USB storage device | ||||||||
Batch stroage | Saving and printing of the last 50 batches | ||||||||
Dry contact | 24-pin communication interface with 4 fixed configured inputs and outputs each and 3 configurable inputs and 4 configurable outputs | 1x power supply, 1x USB port, 2x Ethernet ports, 1x dry contacts (remote control), 1x port for leakage measuring device, 1x port for optical and acoustic detector 1x port for an emergency stop button |
|||||||
Ethernet communication | 2 configurable additional interfaces - Ethernet communication | Ethernet-Communication | Ethernet-Communication |
