Cleanroom Fan Filter Unit (AC Standard)
Description


The product is an AC standard type Fan filter unit. Capable of supporting any cleanroom configuration. Special inlet design can minimize pressure drop and noise. The strong configuration can withstand the weight of a person during installation and replacement. Energy-saving design reduces operating costs.



·     The built-in diffuser plates help with the even wind pressure diffusion and air velocity distribution.


·     The built-in wind deflector is anti-aging to prevent secondary pollution. The surface is smooth and with low airflow resistance. It is also with excellent sound insulation.


·     With a high-quality blower and efficient motor, the energy consumption is lower.


·     The single-phase motor enables speed adjustment for three levels. Air velocity and volume can be adjusted to meet different situations.


·     The dimensions of the FFU can be customized.

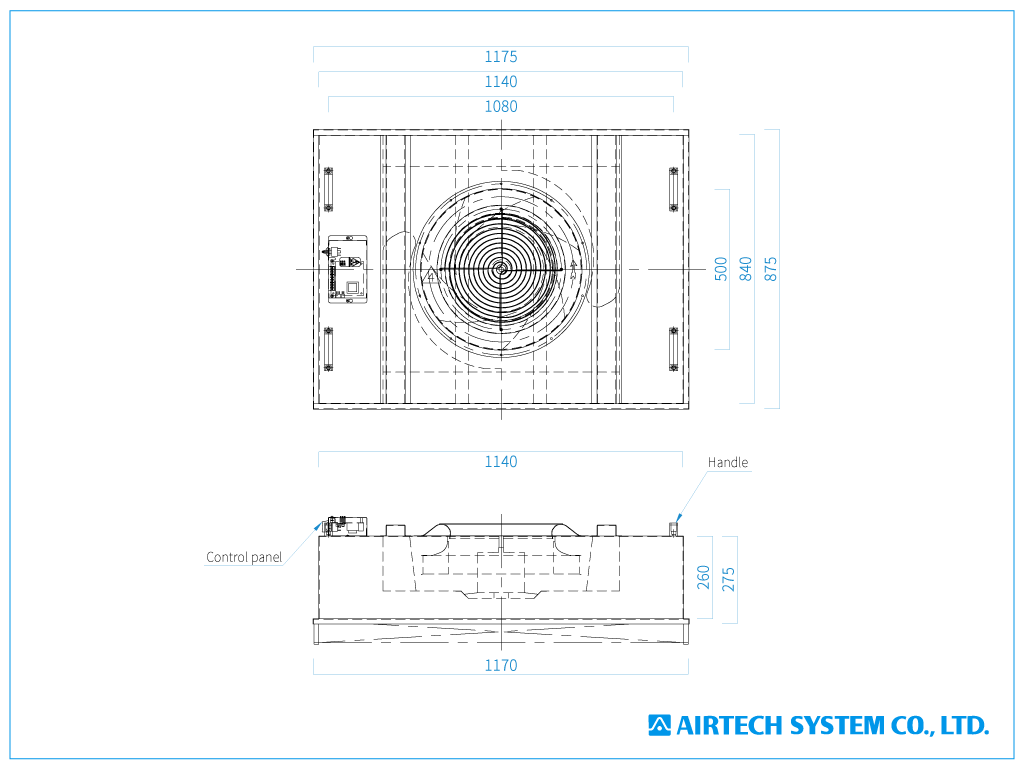

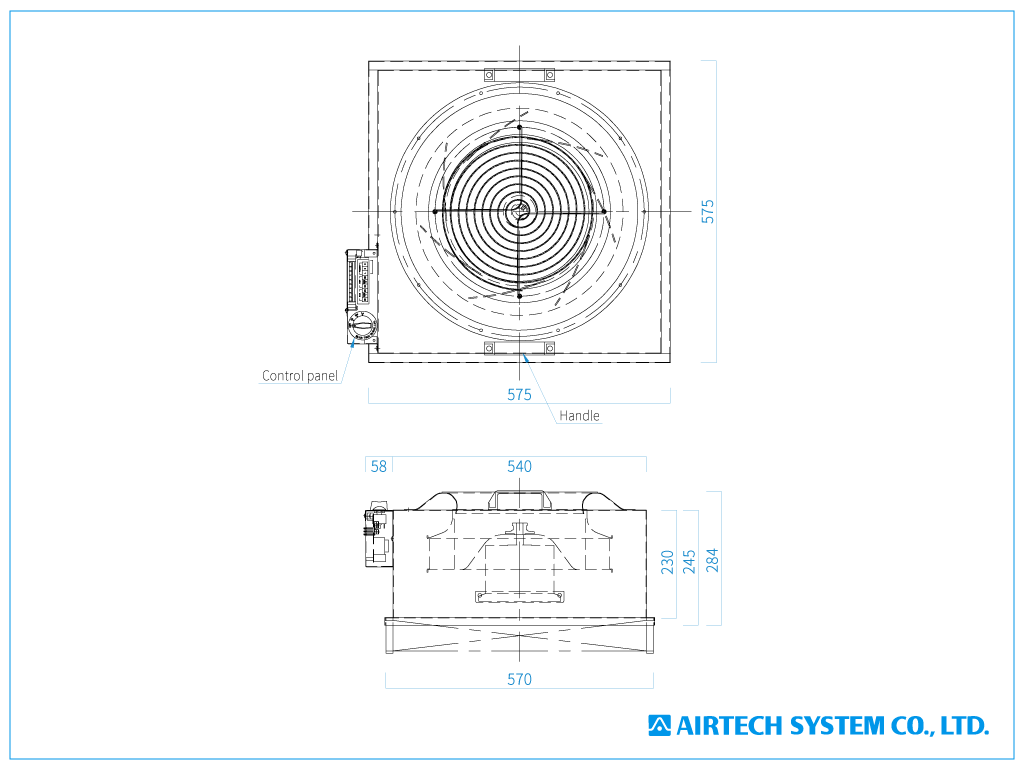

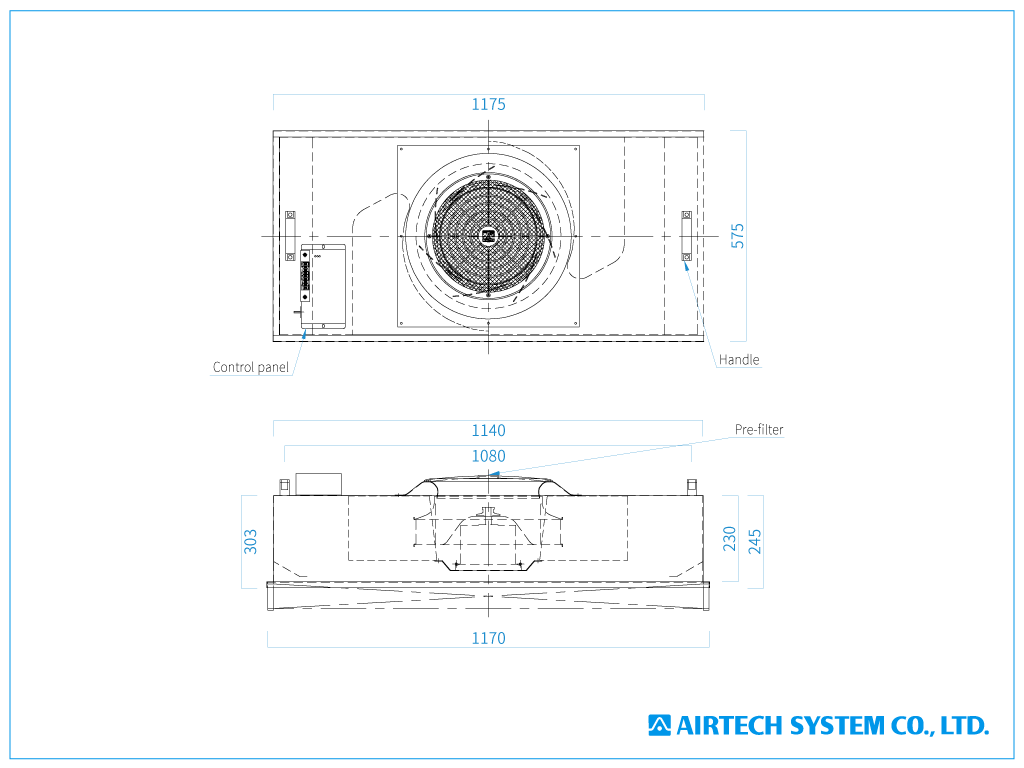

Model T-8 T-15 T-22
Efficiency HEPA: Above 99.99% Efficient On 0.3µm ParticleULPA: Above 99.999% Efficient On 0.12µm Particle
Pre-Filter Non-woven Filter / Grille Filter
Main Filter HEPA / ULPA
Electrical 1Φ AC 110V/220V 50/60Hz
Speed levels High Middle Low High Middle Low High Middle Low
Electric current(VA) 152 121 111 165 135 122 330 280 260
Air velocity(m/s) 0.51 0.45 0.4 0.46 0.38 0.31 0.45 0.38 0.33
Air volume(CMM) 9 8 7 17 14 11.5 26 22 19
Volume(dBA) 54 52 50 52 50 48 58 56 54
Blower AC blower
Weight(Kg) 20 32 52
Construction Cold-rolled Steel with Bake Painting / stainless steel SUS 430 / Aluminum anode
