Veterinary Fume Hood
Description


This equipment can be used as a ventilation and exhaust system within laboratories, commonly known as a fume hood. In animal hospitals and veterinary clinical environments, operations such as pathological sectioning and pharmaceutical compounding frequently release pungent volatile organic compounds (VOCs). Specially designed for clinical and laboratory environments in veterinary hospitals, this unit features a top-mounted, high-efficiency extraction and filtration system. It not only effectively and rapidly eliminates operational odors but also reduces the risk of healthcare personnel coming into contact with harmful gases, thereby creating a safe working environment for both pets and medical staff. The main body material can be customized based on the specific substances or gases to be handled. Fully tailored solutions are provided, with benchtop models also available.

·    Integration of laboratory-grade airflow control technology.


·    SGS-certified and rigorously tested (Report No.: DNG26300047).

·    Equipped with an ULPA ultra-high efficiency filter to establish an advanced air defense barrier.

·    Ergonomic top-access design for streamlined filter replacement efficiency.

·    Ideal for hazardous chemical compounding, antibiotic powder handling, and high-risk drug dispensing operations.

Model AFH-680
Particle Efficiency Above 99.999% Efficient On 0.1µm Particles
Main Filter ULPA Filter 420x500x65t x1pc
Electrical AC 110V 1Φ 60Hz
Blower HYQ-225 x 1set
Construction Full body SUS 304 HL | Cold-rolled Steel with baked painting + SUS 304 Inner Worktop
Air Volume (CMM) Hi: 7 Med: 5.9 Lo: 5
Power Consumption (VA) 205

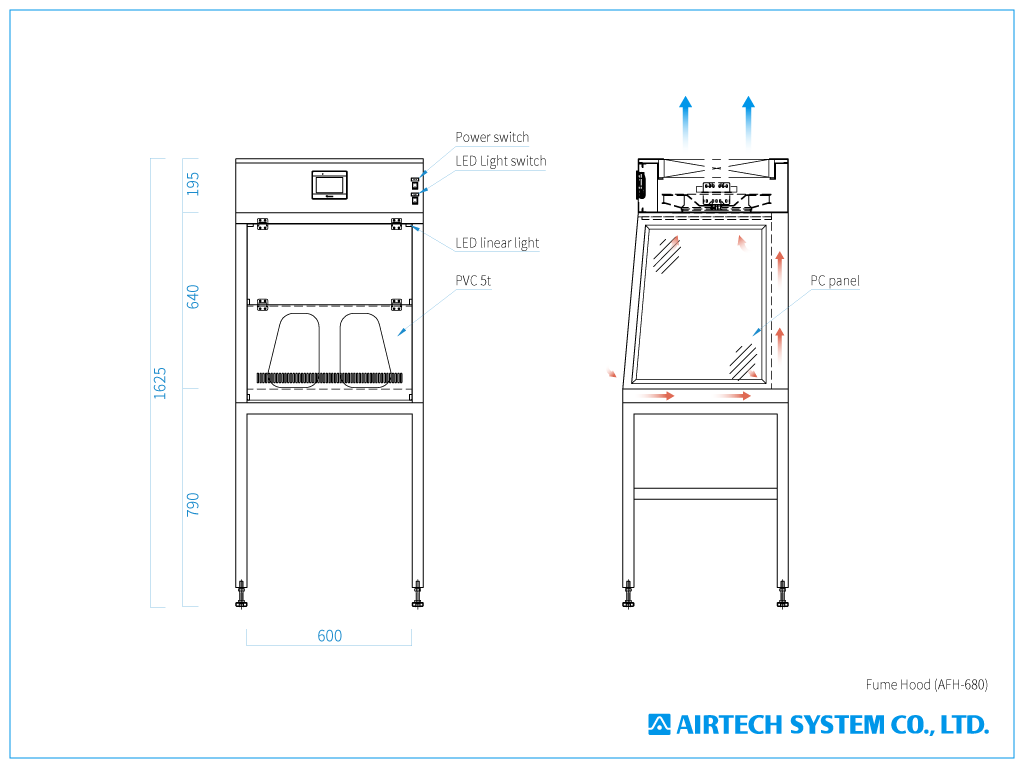

proimages/drawing/Clean_bench Biosafety_cabinet Isolator/fume-hood_AFH-680_1024x768_en.png
