Stainless Steel Fan Filter Unit (EC-MAC)
Description

Our EC-MAC is a small HEPA filtering device that can be customized and can be used for multiple purposes. The model is made of stainless steel with a mirror polish treatment. It's also great resistant to chemicals and corrosion.

·    The removal efficiency of particles with the size of 0.3μm or above is 99.99% or more.


·    The structure of negative pressure can prevent the outspread of dust.

·    Low noise and low power consumption.

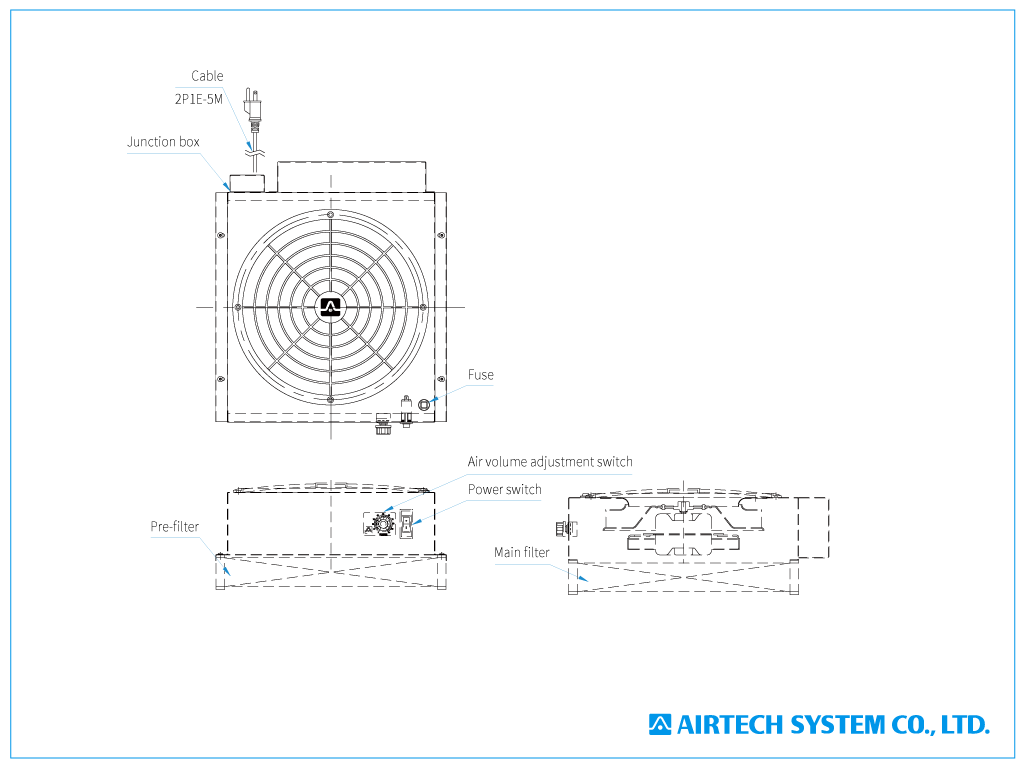

※  The energy-saving model of EC-MAC equipped with a DC brushless motor is also available.

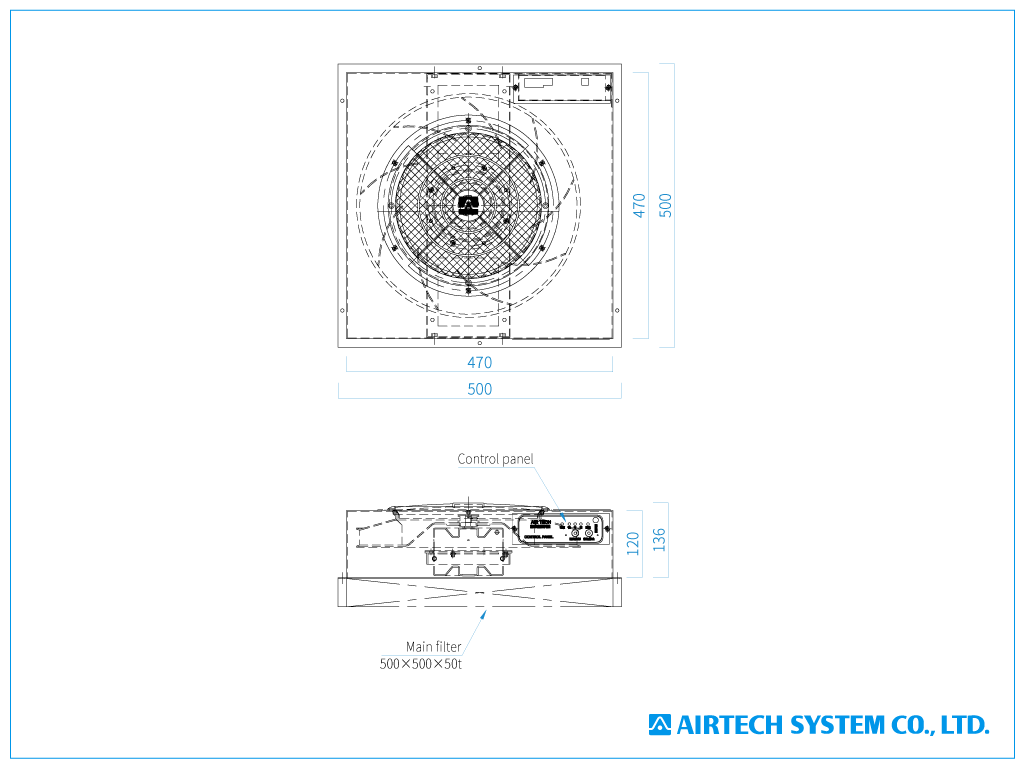

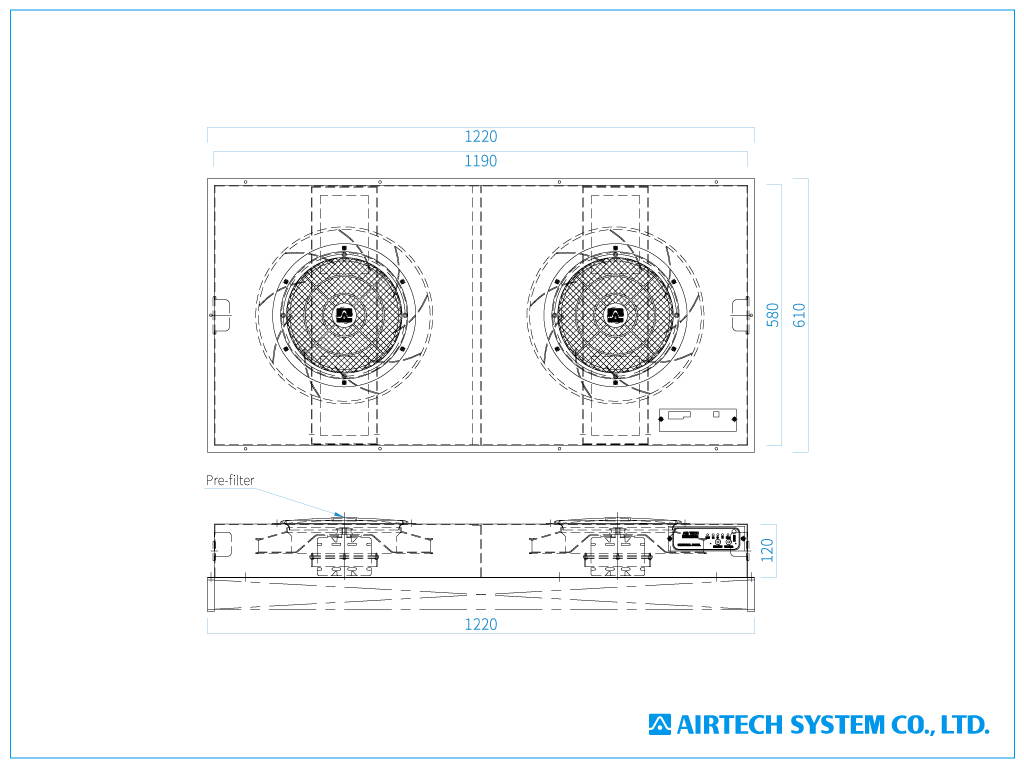

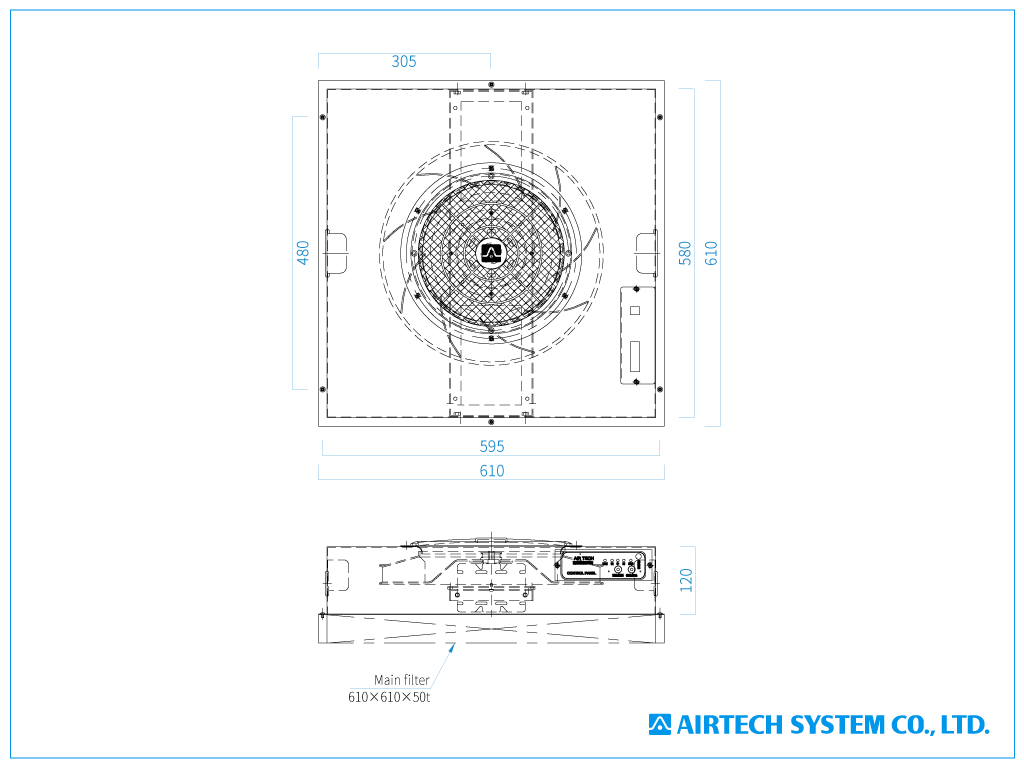

Model MAC-51E MAC-101E MAC-201E
Particle Efficiency Above 99.97%Efficent On 0.3μm Particles
Dimension(WxDxH) 500x500x136 610x610x136 1220x610x136
Filter Dimension HEPA filter
500x500x50tx1pc
HEPA filter
610x610x50tx1pc
HEPA filter
(610x1220x50t)or
ULPA filter
(610x1220x65t)
Operating speed Hi Mid Lo Hi Mid Lo Hi Mid Lo
Air Velocity(m/s) 0.56 0.47 0.40 0.47 0.42 0.34 0.48 0.38 0.31
Air Volume(CMM) 7.4 6.2 5.3 9.6 8.6 6.9 20 16 13
Power Consumption(VA) 170 130 110 170 130 110 340 260 220
Noise(dBA) 62 59 58 58 57 56 60 59 58
Electrical AC 220VΦ 60Hz
Structure Steel plate bake painting / SUS430
Operation Indicator High brightness red LED *Luminous lampshade
