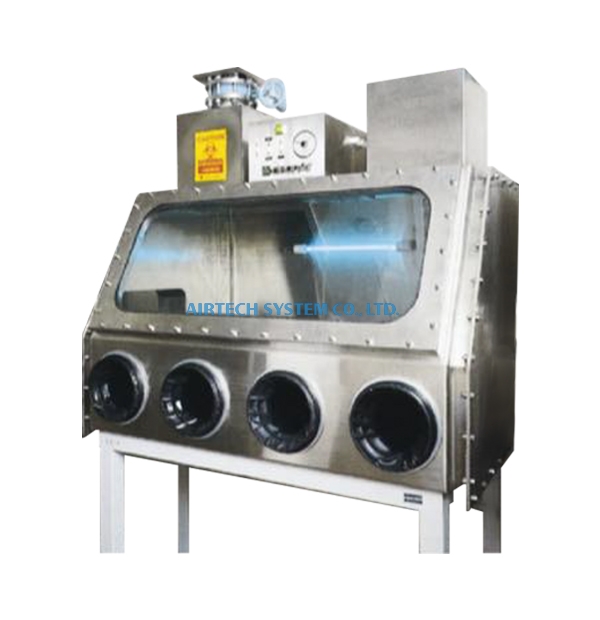

Glove box
Description

Our glove box is a BSL-4 (BioSafety Level 4) containment glove box.  It provides a controlled, sterile, and negative air pressure, environment so as to prevent contamination of samples, substances or other materials that are being handled inside the box.  It also protects the user from possible contamination from hazardous substance being handled inside the box.  Our glove box can also be linked-up with an autoclave or other devices in a line.



·      Both air supplied to and air expelled from the glove box pass through HEPA filters.



·      Negative air pressure inside the box is monitored and maintained at 130Pa.



·      Our glovebox can be operated as a standalone unit or can be linked with other machines as well.

Cleanliness  ISO Class 4(Class 10)
Particle Efficiency Above 99.995% Efficient On 0.3µm Particles
Main Filter HEPA Filter(H14) x2pcs
Air Velocity (m/s) 0.45±20%
Air Volume (CMM) 15
Electrical 3Φ 220V 60Hz
Light LED 10W x1
Construction Stainless Steel SUS 304 (HL)
Power Consumption (VA) About 950

Note: Above specific unit could be tailored to the needs of the customer.

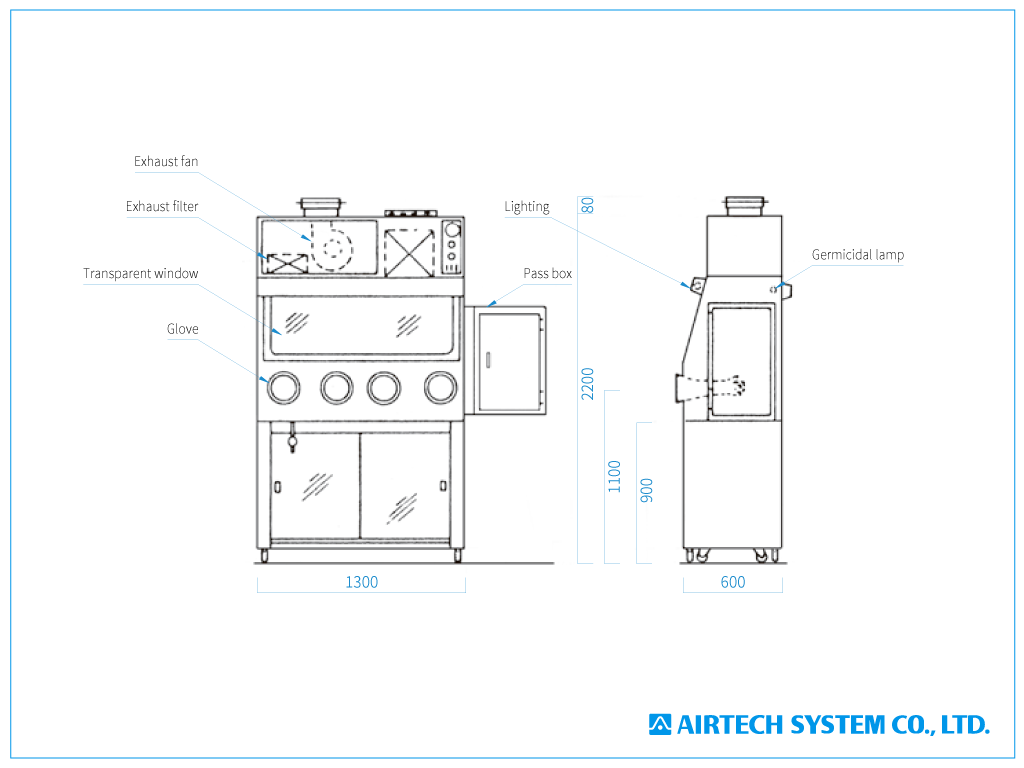

proimages/drawing/Clean_bench Biosafety_cabinet Isolator/Glove_box-drawing_1024x768px_en.png
