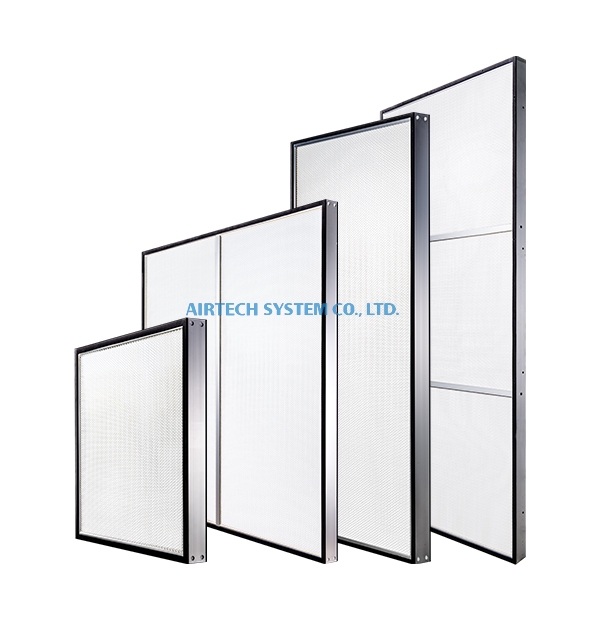

HEPA Filter 3AL SERIES

HEPA Filter 3AL SERIES
HEPA Filter 3AL SERIES
HEPA Filter 3AL SERIES
Description

Mini-pleat design, light-weighted, compact, and easy to Install.

Both sides of the filter are protected by aluminum mesh. Besides, the aluminum frame and the aluminum mesh are anodized. It can be customized according to customer requirements. Widely used in electronics, microelectronics, semiconductors, optional devices, biological and medicine, cameras and optional instruments, precision machinery, and other fields.

Add Inquiry

·     High-efficiency particle air (HEPA) filters are 99.99% efficient in removing particles 0.3 µm and larger. Suitable for H13 class as per EN1822.


·     All filters are leak tested for particle count.


·     Filter construction as per recommendations of IEST-RP-CC001.


·     Each filter comes with a test report.


Model Rated air volume(CMM) Length(mm) Width(mm) Thickness(mm) Weight(kg)
3AL-03003065 5.0 305 305 65 1.5
3AL-06106165 23.4 610 610 65 3.5
3AL-06107665 29.6 610 760 65 4.0
3AL-06109165 35.9 610 915 65 4.5
3AL-05711765 43.1 570 1170 65 5.5
3AL-06112265 48.5 610 1220 65 6.0
3AL-08711765 67.6 870 1170 65 8.0
3AL-11711765 92.0 1170 1170 65 11.0

Series 3AL
Efficiency Above 99.97% efficient on 0.3μm particles
Filter media Fiberglass
Frame, Grid Anodized aluminum
Max. operating temperature 80℃
Max. operating humidity 100%
Pressure drop (Initial) 250pa (at air velocity 1.2m/s)
