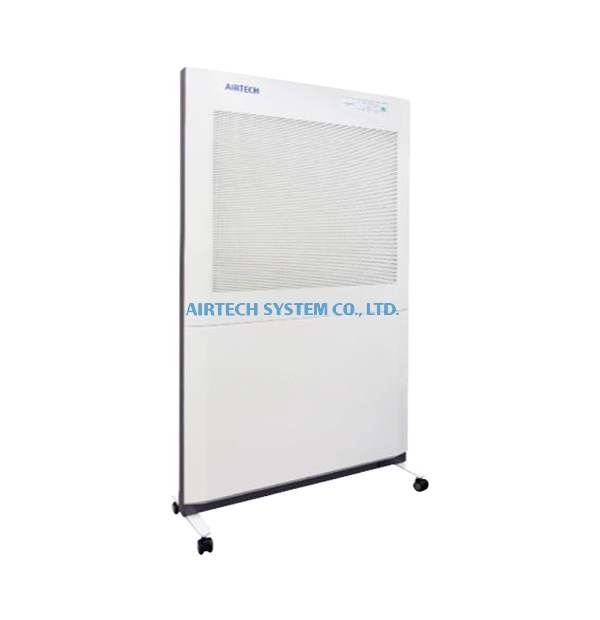

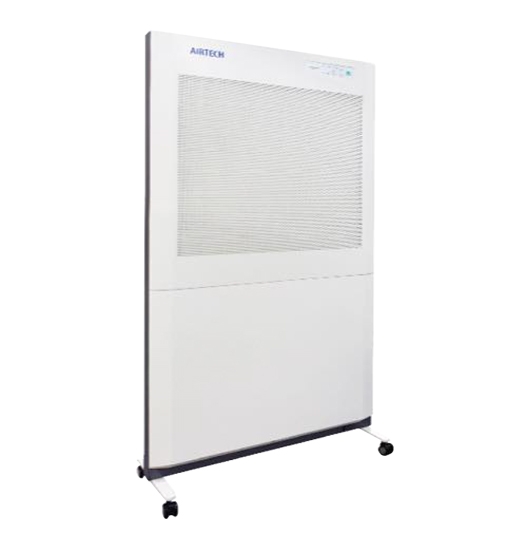

Partitioned Air Purifier (Clean Partition)

Multi-purpose air purifier in a thin partition panel format.  Its large surface HEPA filter effectively removes 99.99% of particulate matter as small as 0.3μm
 in size, including airborne bacteria and other pathogens.  Designed to operate at a sound level of just 40dBA under normal conditions, ensuring a quiet and comfortable ambient noise level.   There are four (4) models to choose from based on airflow patterns. They can be used as standalone units or as bundled unit incorporated in a variety of applications. This product is well suited for waiting rooms, treatment rooms, offices,  interview rooms, meeting rooms, and more.  It is best for enclosed places where physical face to face meetings take place.

·    Powerful air purifying unit in a slim panel format.

·    We have 4 models that come in either of two types of airflow pattern: Clean Air Blowing Type (Positive Airflow) and Decontamination type (Negative Airflow).

·    Can be used in different application configurations (clean bench, exhaust bench, push-pull combination, ceiling/wall mount type, etc.)

·    Equipped with a power-saving DC brushless motor.

·    5-speed setting levels.

·    Space-saving, slim-panel type, multi-purpose air cleaning unit.

·    Low noise level. Ambient noise level at 40dBA when in low-speed operation.

·    Has a wide range of applications, from clean rooms, clean areas, sterile rooms, infection prevention rooms, and others.

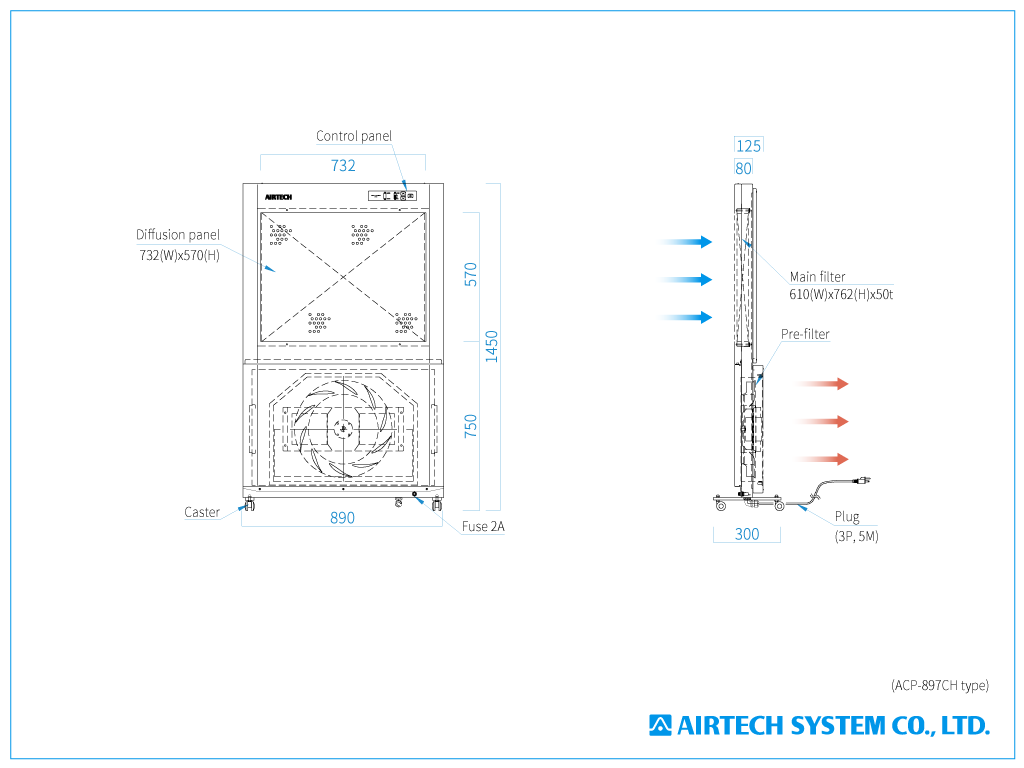

Model ACP-897AH     |ACP-897BH     |ACP-897CH     |ACP-897DH
Particle Efficiency Above 99.99% Efficient On 0.3µm Particles
Main Filter HEPA filter (610×762×50t ×1pc)
Construction Cold-rolled steel with bake painting
Color Pearl white / Dark gray
Weight (kg) Approximately 43
Electrical AC 1Φ110V 50/60Hz
Pre-Filter Non-woven filter
Operation switch Single-chip microcontroller
Base  Base pedal stainless steel SUS304
Volume setting Ultra       Hi       Me       Lo      Mute
Air Volume (CMM) 11.5        6.5     5          4        3
Air Velocity (m/s) 0.46        0.26   0.2       0.16   0.12
Noise (dBA) 61           51      48        45      40
Power Consumption (W)
100         35      25        25      15
150         55      40        35      25
