Pressure Relief Damper(APD)

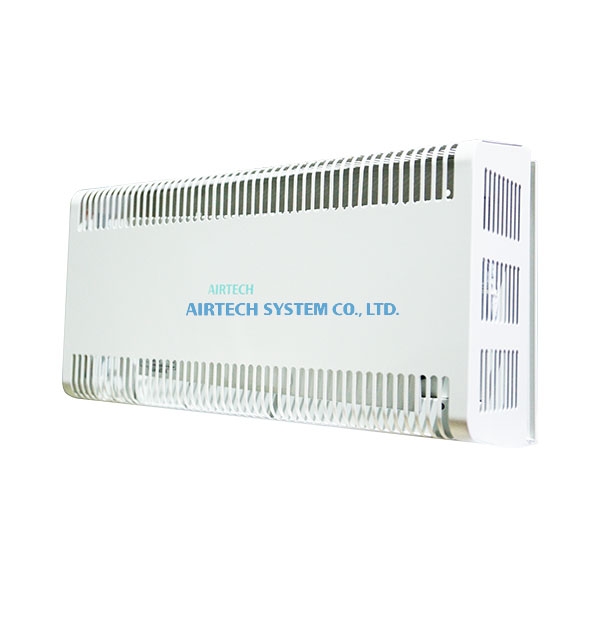

Pressure Relief Damper(Front)

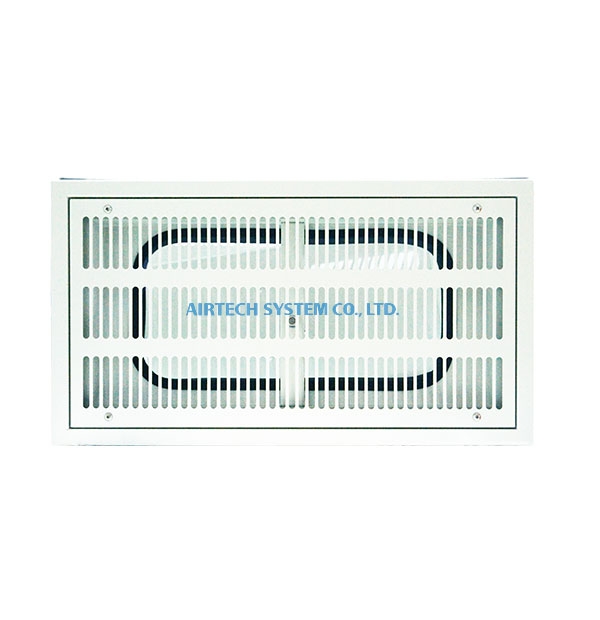

Pressure Relief Damper(Back)

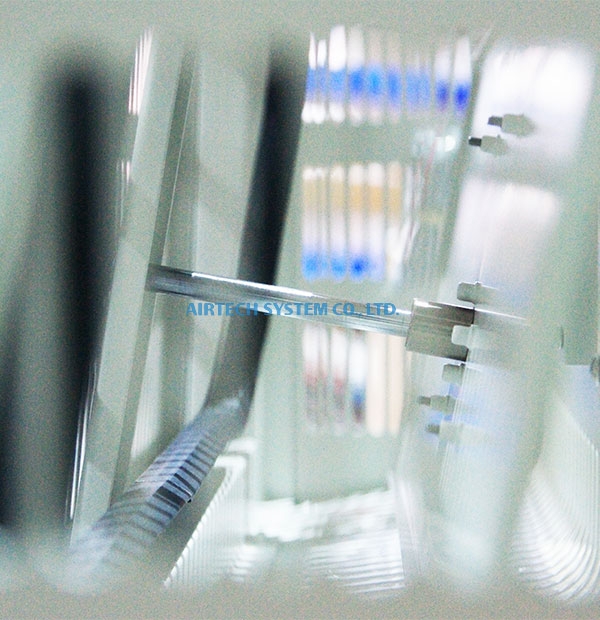

Pressure Relief Damper(Inside)
Pressure Relief Damper(Front)
Pressure Relief Damper(Back)
Pressure Relief Damper(Inside)
Pressure Relief Damper(APD)
Description


 To prevent contaminated air from entering the cleanroom, pressure relief dampers (also called pressure equalizers) are used to maintain a slight positive pressure inside. These devices are installed in the walls and help balance the pressure between the inside and outside of the room. The internal blades can be adjusted using counterweights according to on-site pressure difference requirements.



Add Inquiry

·     The blades adjust based on the pressure difference inside and outside the cleanroom to keep the internal pressure stable.

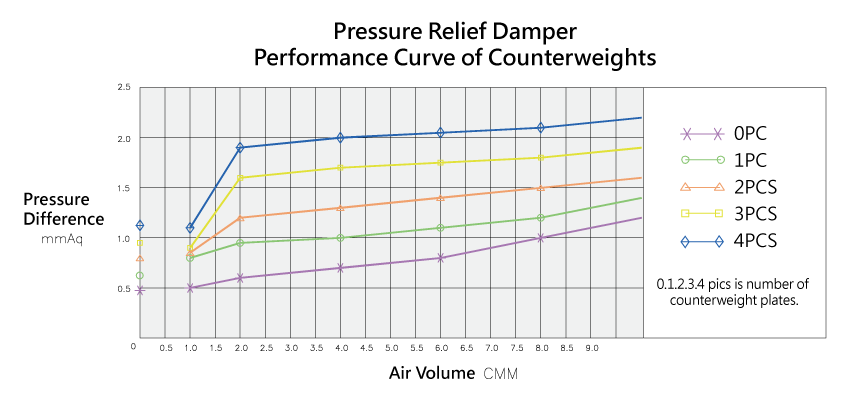

·     The counterweight can be adjusted for pressure between 0.5 mmAq and 2.2 mmAq.



·     Screw length can be modified for walls thicker than 40 mm.


·     A protective cover is installed on the casing to prevent collisions and obstructions during damper movement.


Model APD-10D
Construction Body and cover: coldrolled steel with bake painting
Damper Panel: AL W/bake painting
Counter Weight: steel W/bake painting.
Pressure Differnce 0.5 mmAq ~ 2.2mmAq
Air Volume(CMM) 1~10
The Other The counter weight can be adjust and fixed by screw

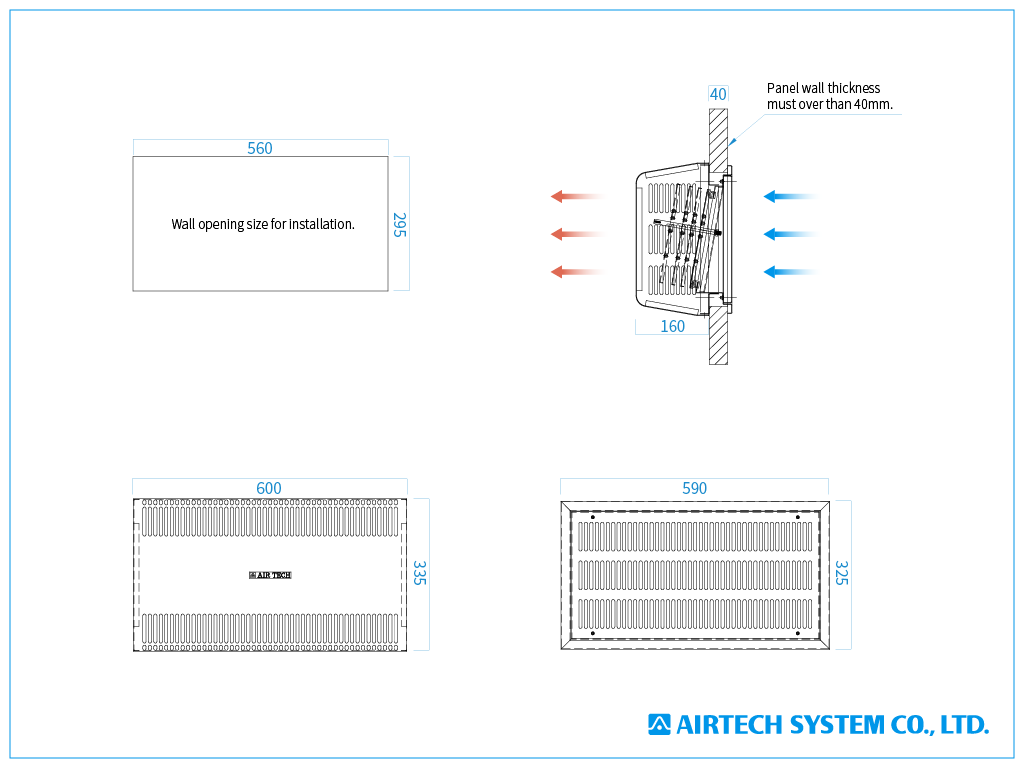

proimages/drawing/cleanroom-facility/Damper_APD-10D_1024x768px_en.png
