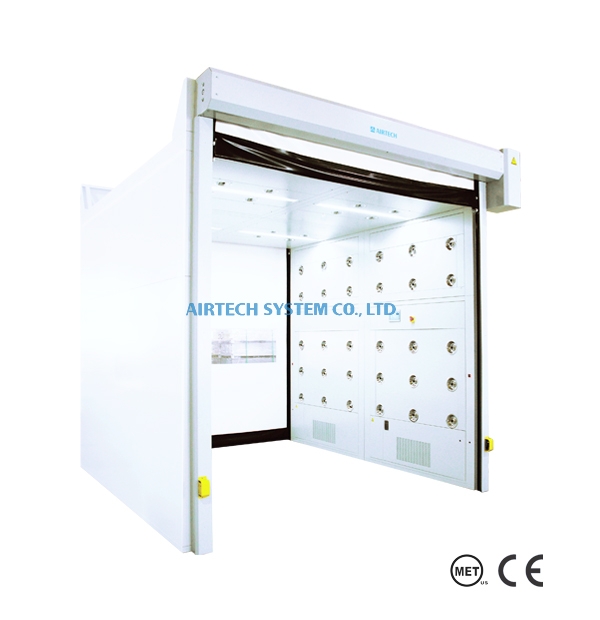

Cleanroom Roller Shutter Air Shower
Description

This air shower utilizes a high-speed roll-up shutter for a door.
It was designed to be deployed in areas that have very limited access space.
Since the shutter rolls up in a vertical motion, it does not need as much space as an air shower that uses a typical door or even a sliding door.
Moreover, the shutter opens and closes itself on an automatic fashion, thus eliminating the need to handle the door with one’s hand.
This helps personnel maintain the sterility of their hands before entering a cleanroom.

·    Our air showers are equipped with DC brushless motors and LED lights, thus ensuring low-power consumption and lower operating cost.

·    AIRTECH’s space-saving design has enabled it to produce air showers with the smallest dimensions in the industry without compromising capacity and comfort.

·    Space-saving.  The roll-up shutter door is built in the equipment and does not require additional installation space outside the dimensions of the air shower.


·    Our air showers are deployed with a proprietary and patented pulse jet nozzle that is highly effective and efficient in removing unwanted particles and contaminants.

·    We look into every detail in designing our air showers; making sure form meets function. The best designs are then copyrighted and standardized, ensuring consistency across our products.

·    The Language settings of our air showers are easily customizable. Voice instructions of the unit can be easily changed to a language of your preference.

·    The equipment automatically goes on energy-saving mode when it is on standby.

Model AAS-1410EARACM-2
Particle Efficiency Above 99.99% Efficient On 0.3µm Particles
Pre-Filter Non Woven Filter 600×300×12t x 4pcs
Main Filter HEPA Filter 915×762×50t x 4pcs
Nozzles Qty 44pcs(Anti-Static PVC Nozzle)
Air Velocity (m/s) Air Jet~Strong breeze Above 30
Air Volume (CMM) Air Jet~Strong breeze Above 56 (Recirculation Air~Above 20)
Air Changes (hour) Air Jet~Strong breeze Above 587 Times (Recirculation Air~Above 210 Times)
Blower Brushless DC motor (NEF-6E x 4pcs)
Construction Coldrolled Steel With Bake Painting
Color Ivory
Electrical AC 3Φ220V 60Hz
Power Consumption (VA) Air Jet~Strong breeze About 4400(Recirculation Air~About 1820)
Interlocking Action Both doors are interlocked. When one door is opened, the other door is locked. In case of power failure, the door locks are automatically released for safe personnel exit.

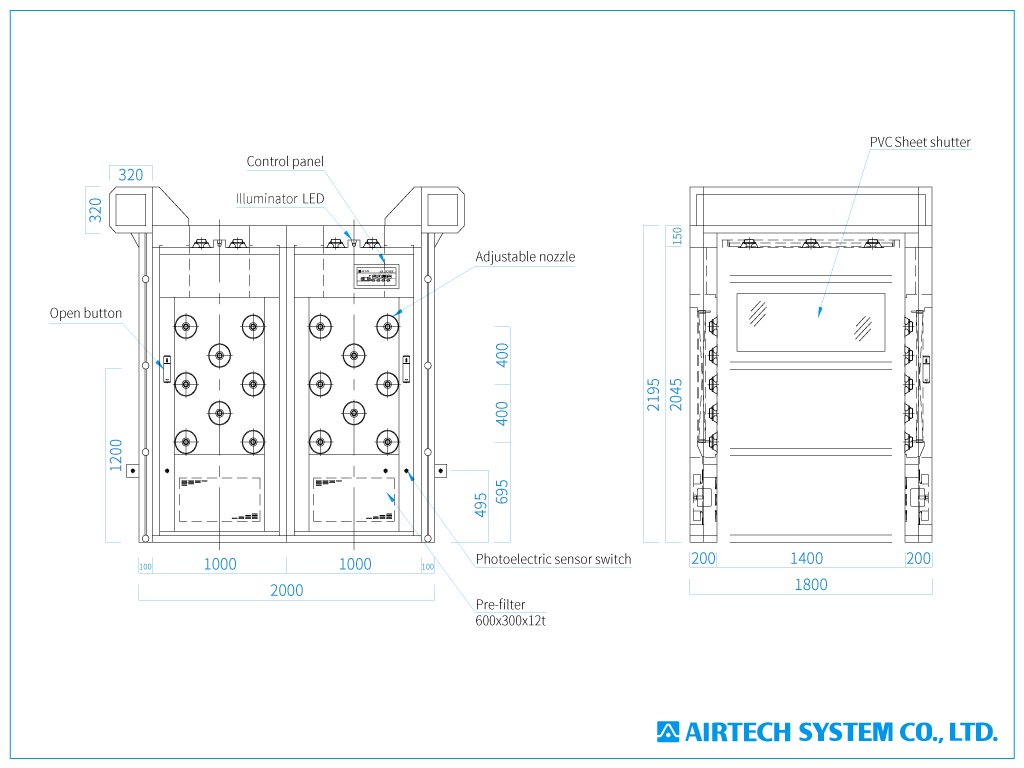

proimages/drawing/air-shower/sheet_shutter_air_shower_1024x768px_en.png
