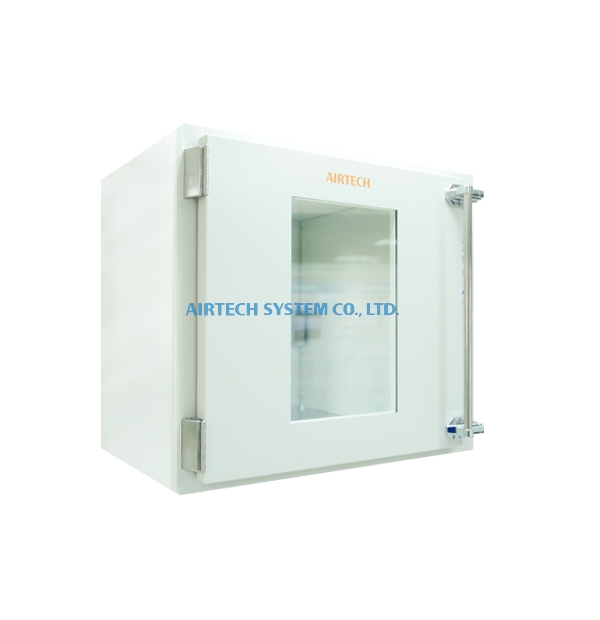

Cleanroom Biohazard Pass Box (BHPB)

Biohazard Pass Box (BHPB)
Biohazard Pass Box (BHPB)
Cleanroom Biohazard Pass Box (BHPB)
Description
The pass box is used to carry in and out items in clean rooms and bio-clean rooms to prevent the invasion of dust and bacteria that cause pollution.
BHPB type is a pass box compatible with biohazard countermeasure rooms (BSL-3, etc.). The highly airtight structure allows isolation inside and outside the room. The door has a large window that makes it easy to see inside the pass box, and is designed with consideration for user operability. A germicidal lamp can be installed as an option.
Add Inquiry

·    It is compatible with the biohazard countermeasure room (BSL-3) and has a highly airtight structure.

·    Both doors have an interlock (electromagnetic lock) structure, so they cannot be opened at the same time.

·    When the door is opened, a buzzer sounds and an indicator light on the opposite side notifies the door to open.


·    It can also be used for interior and exterior stainless steel specifications.

·    Use silicone gaskets with excellent air-tightness.

Model BHPB06-666R
Window Transparent glass
Base Stainless steel SUS 430
Interlock Interlock indicator, buzzer, magnetic door lock
Construction Option: 1. Coldrolled steel with bake painting (Ivory)  2. Stainless steel SUS 430
Electrical AC 1Φ110V 60Hz
Interlocking Action Both doors are interlocked. When one door is opened, the other door is locked. In case of power failure, the door locks are automatically released for safe personnel exit.

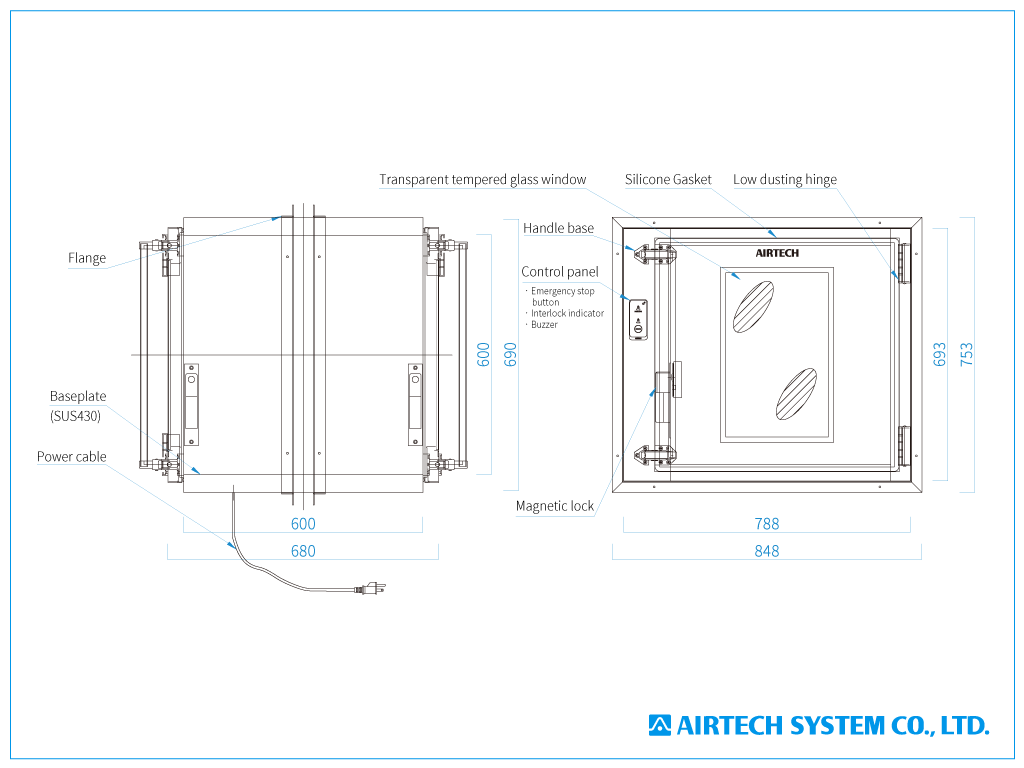

proimages/drawing/pass-box/BHPB_Biohazard_pass_box_1024x768px_en.png
