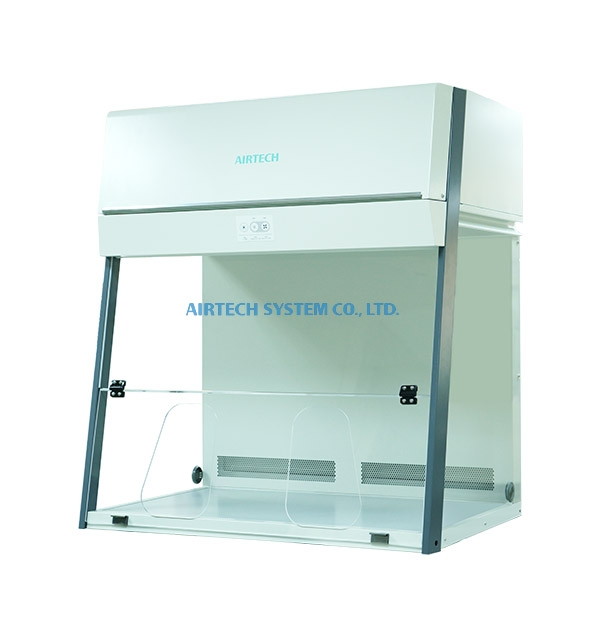

Desktop Fume Hood

· It sucks in at the specified wind speed from the hood opening to prevent leakage to the outside.

· Harmful gas is removed in three stages: deodorizing filter activated carbon filter and high-performance filter.

· Select an appropriate filter from the type of generated gas, alkaline type, acid type, solvent type, etc.

· There are two models with a width of 516 (W) and 916 (W) mm.

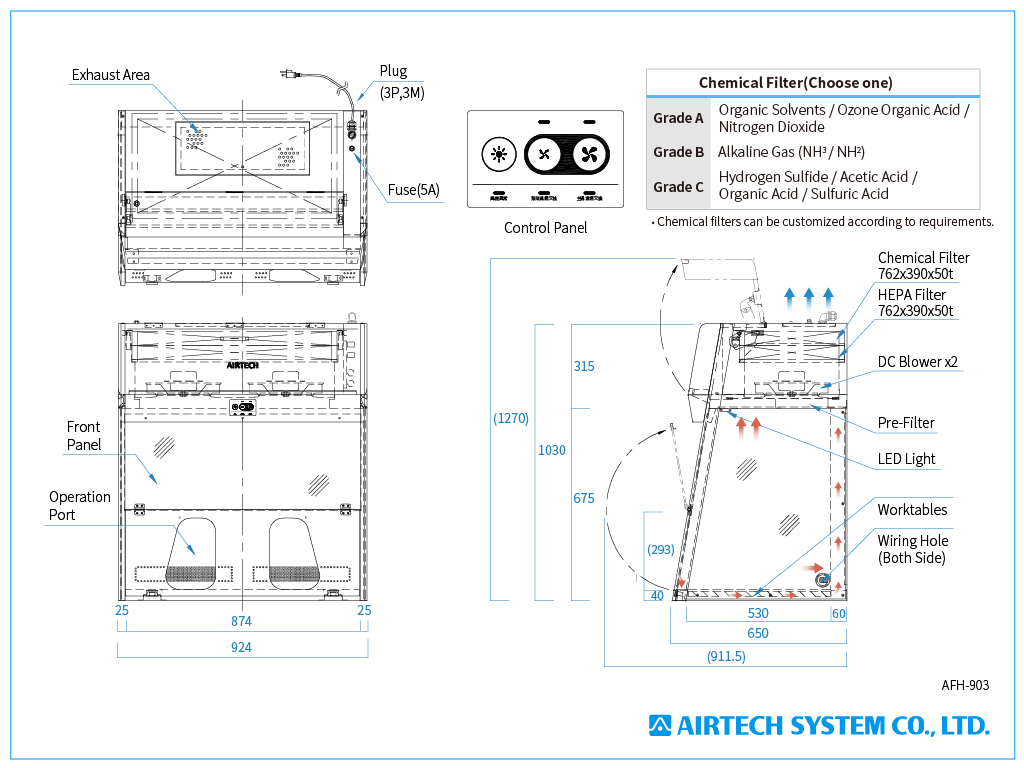

Model	AFH-903
Particle Efficiency	HEPA: Above 99.99% Efficient On 0.3µm Particles
Main Filter	HEPA：762x390x50t x 1pc
Pre-Filter	Nylon
Adsorption	Chemical Filter：762x390x50t x 1pc
Air Velocity (m/s)	0.6 (Operation port)
Air Volume (CMM)	3.1
Construction	Main Body：Coldrolled Steel W/ Bake painting Front Panel：PMMA (Clear) Side Panel：PMMA (Clear) Worktables：Trespa Side Pillar：Aluminum module
Electrical	AC 110V 1Φ 50/60Hz
Power	Normal Mode：60W Full Power Mode：75W
Weight (kg)	90
