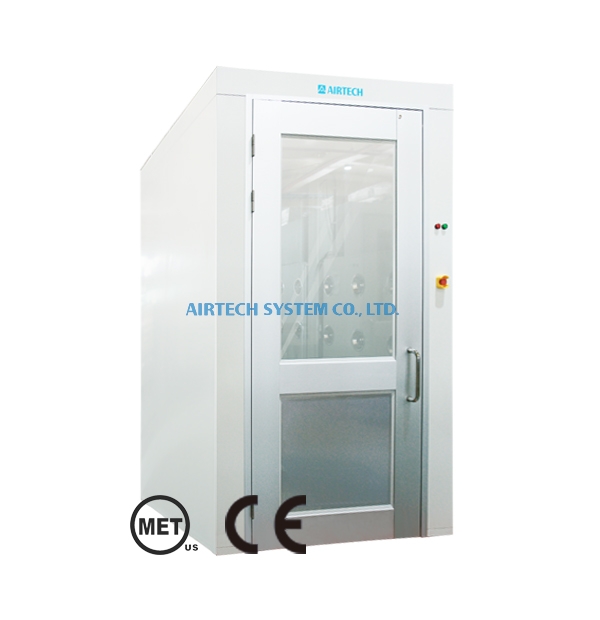

UL listed Air Shower
Description
The superb energy-saving air shower brings out ultra-clean air. Air is forced by the blowers through HEPA filters which are 99.99% efficient against particles of 0.3 microns. The air jets at
the velocity of 23 m/s to ensure efficient scrubbing action to remove particulate matter.

*Complies with UL & CE certification.

·    High static pressure DC blower: Compact, high static pressure, low power consumption, only one unit could achieve outstanding efficacy.

·    Conserve electricity: Compare with the traditional air shower, it could significantly save 30% energy by reducing the number of motors.

·    Integrated programming system service: Program fine-tunes writing can be easily modified and customized.


·    Intelligence control system: With a modulus control panel with intelligent programming, the control system provides stable quality.

·    LED saving more energy: Energy-saving light, power indicator light, graphical description, all of it is clear and easy to understand.

·    Recheck your garment: Tidy up cleanroom overalls by using the two-sides mirrors while entering the air shower.

Model AAS-0810EARC-1 AAS-0810EARC-1.5
Dimension (WxDxH)(mm) 800x1200x1000 800x1200x1500
Circulation (hour) 658 times 487 times
Nozzles Qty 18 20
Air Velocity (m/s) ≧23
Air Volume (CMM) 17.5 19.5
Electrical AC 3Φ220V 50/60Hz
Pre-Filter Non-woven filter
Particle Efficiency Above 99.99% Efficient On 0.3µm Particles
Operation switch Single-chip microcontroller
Base Base pedal stainless steel SUS304
Construction Cold-rolled steel with baked painting Stainless steel SUS304(optional)
Color Ivory, pearl white(optional)
Sensor Photoelectric sensor switch
LED light 10W x1pc
Interlocking Action Both doors are interlocked. When one door is opened, the other door is locked. In case of power failure, the door locks are automatically released for safe personnel exit.
Optional Voice guidance system, sheet shutter door, auto door
