Description
It is a desktop-type clean bench. There are two models with a width of 750 and 1000 mm.
A tilted slide shutter has been adopted to improve workability.
Power saving has been achieved by adopting a DC brushless motor.
Add Inquiry

·    The slanted slide shutter structure improves workability.

·    By adopting a DC brushless motor, power consumption has been reduced by 30% or more.

Model KVM-757 KVM-1007
Cleanliness ISO Class 5 (Class 100 )
Particle Efficiency Above 99.99% Efficient On 0.3µm Particles
Main Filter HEPA Filter 320x610x65t x 1 pc  HEPA Filter 320x860x65t x 1 pc
Pre-Filter Nylon mesh cover Φ340 x1EA Nylon mesh cover Φ340 x2EA
Air Velocity (m/s) 0.34 0.38
Air Volume (CMM) 5 8
Electrical AC 110V 1Φ 50/60Hz AC 110V 1Φ 50/60Hz
Blower DC Motor x 1 set DC Motor x 2 set
Construction

Main body: Cold-rolled steel with baked painting
Work space: Stainless SUS304 (HL)

Main body: Cold-rolled steel with baked painting
Work space: Stainless SUS304 (HL)
Power consumption (W)

48

95
Weight (kg)

50

60

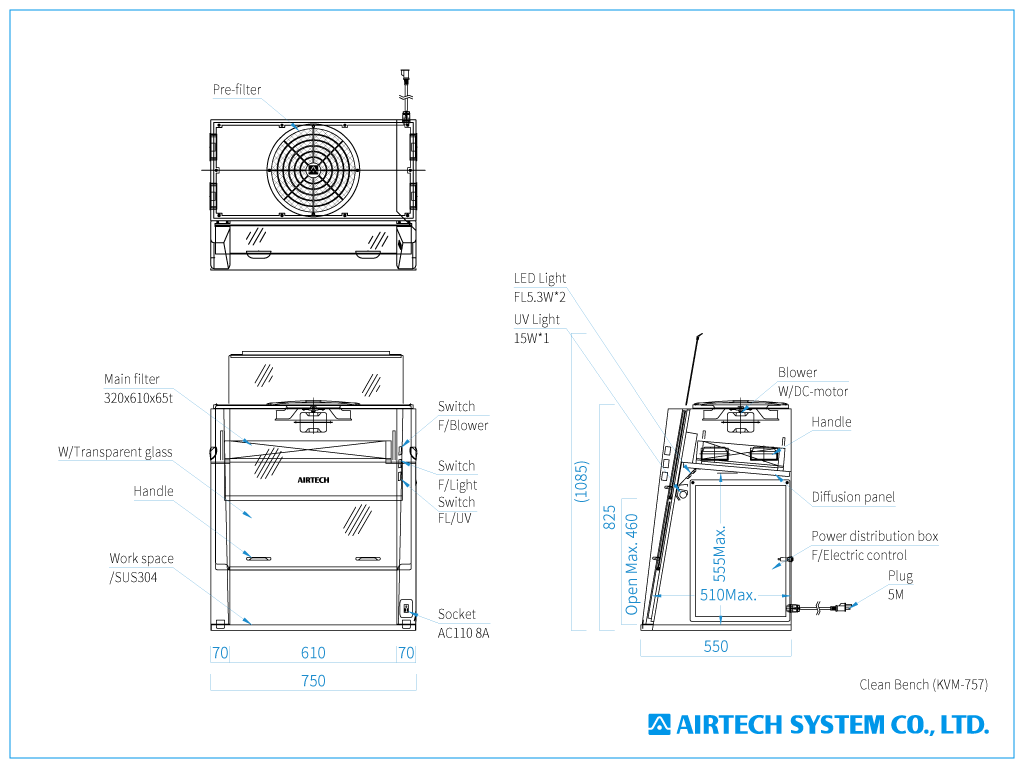

KVM-757
PNG

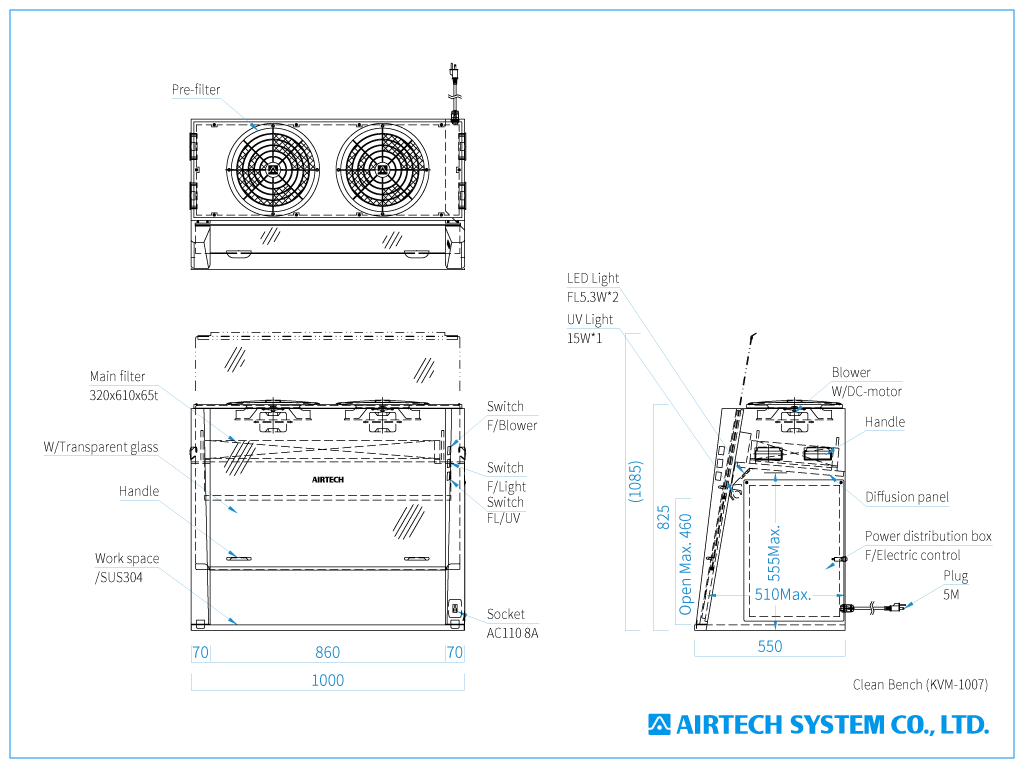

KVM-1007
PNG

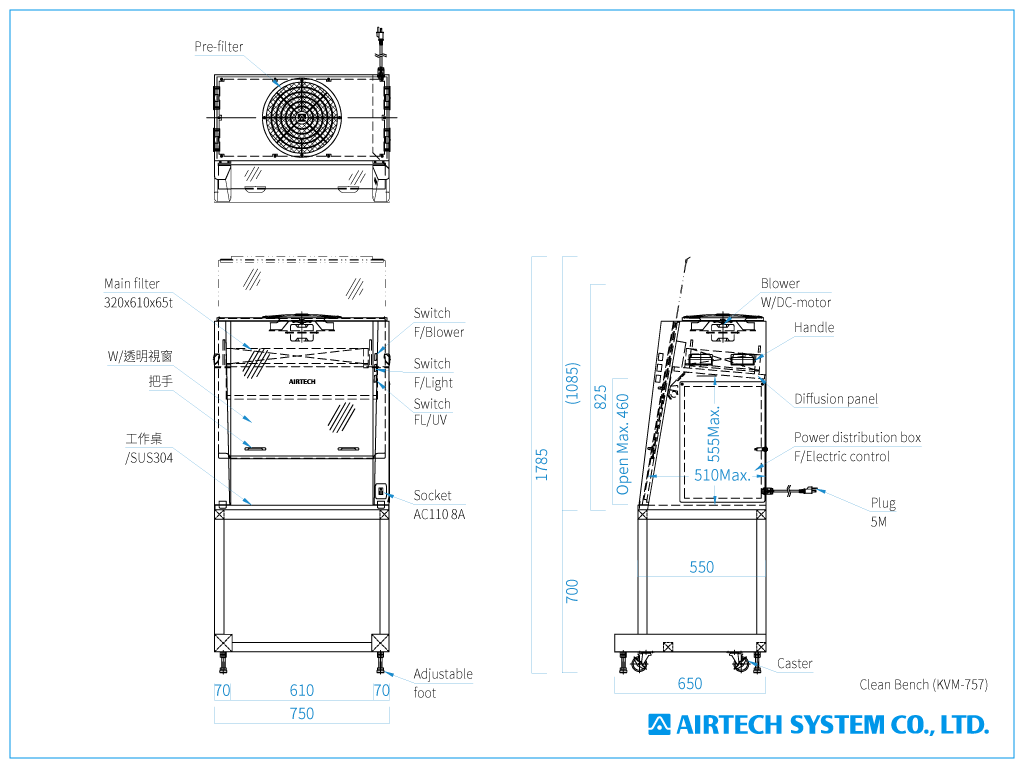

KVM-757
PNG
