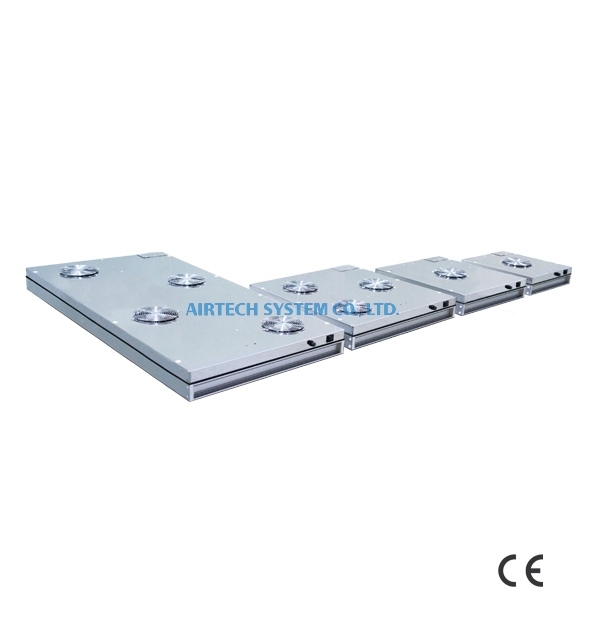

Extremely thin Fan Filter Unit (T-MAC)

Extremely thin Fan Filter Unit (T-MAC)
Extremely thin Fan Filter Unit (T-MAC)
Extremely thin Fan Filter Unit (T-MAC)
Description

Equipped with ultra-thin design, low-pressure loss filter to meet high cleanliness requirements and even break through the shackles of small spaces.

FFU accumulated clean air to cleanrooms and laboratories within the life-science, food and beverage, and microelectronic industries by extracting airborne particles from recirculating air.

Add Inquiry
Model T-MAC-25-S T-MAC-35-S T-MAC-80-S T-MAC-120-S
Particle Efficiency HEPA: Above 99.99% Efficient On 0.3µm Particles
ULPA: Above 99.999% Efficient On 0.1µm Particles
Filter HEPA / ULPA filter
Air Volume (CMM) 2.5 3.5 7.8 12.5
Air Velocity (m/s) 0.32 0.28 0.4 0.3
Structure SUS430
Weight (kg) 4 5 8 14
Electrical AC 85~264V 1Φ 50/60Hz
Power Consumption (W) 25 25 70 92
Fans (Qty) 1
 3 4
Others Air supply-side gasket is attached around the air outlet

Note: Specifications are subject to change without notice. Sorry for the inconvenience caused.

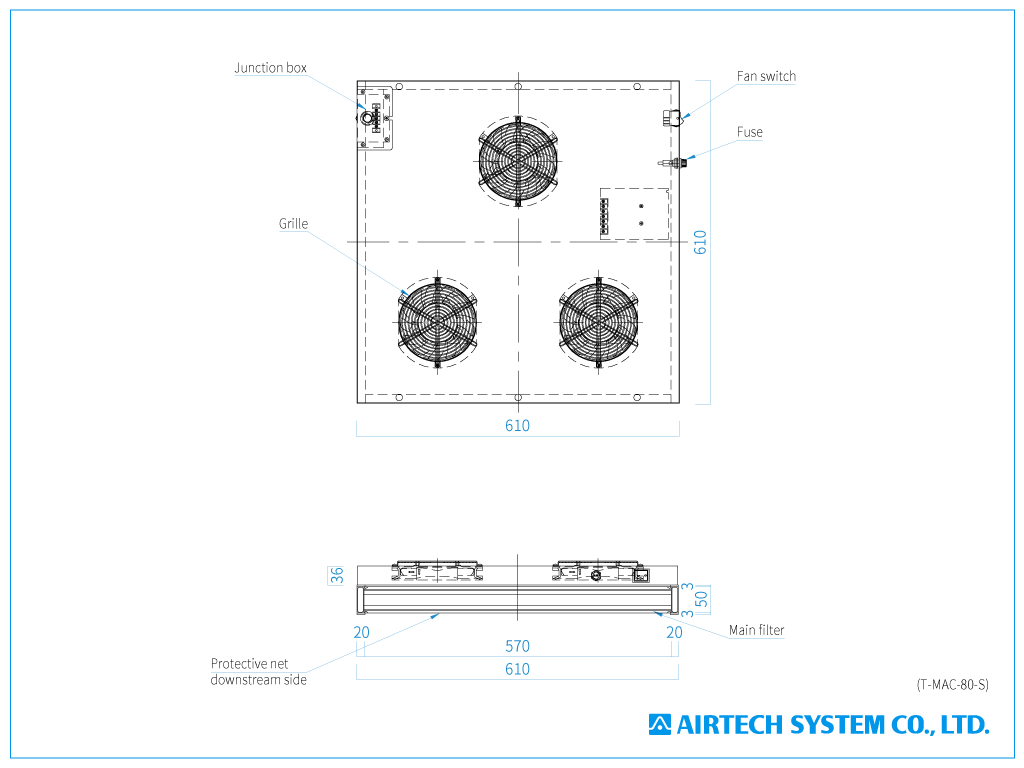

T-MAC-80-S
PNG

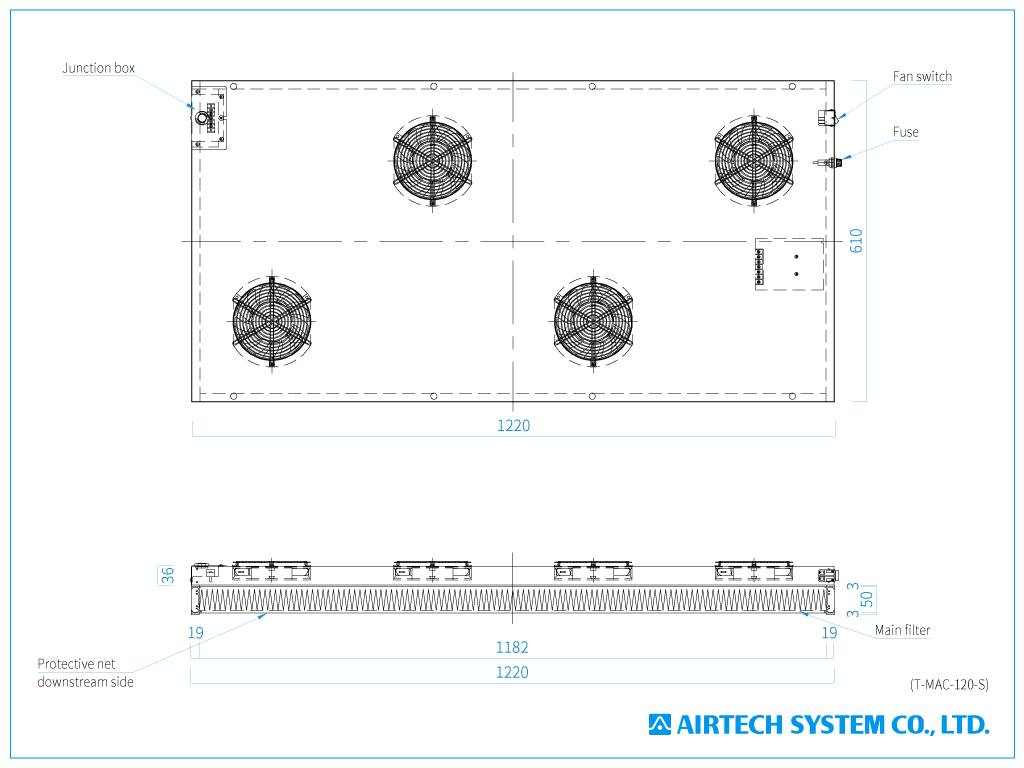

T-MAC-120-S
