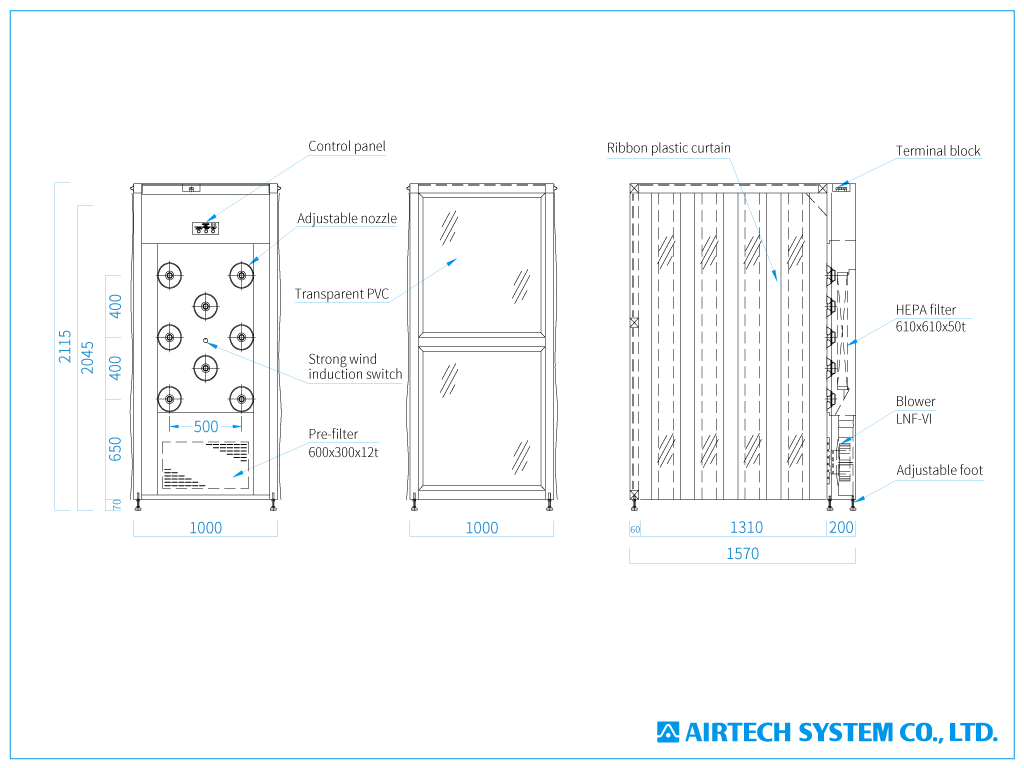

Cleanroom Self Assembly Air Shower
· Rapid mobilization and quick installation. This unit can be installed in just 1 hour by a three-man team.
· Modular and highly adjustable. Both the length and width of the unit can be easily adjusted to fit the spatial requirements or constraints of the customer.
· Utilizes a Single Phase AC power supply. It can be easily plugged into a wall outlet and can be operated immediately once assembled, without the need for complicated electrical or wiring configuration.
· This unit can be installed with the option of using the existing doors of your room or facility. The height and width of the equipment can be easily adjusted for this purpose as well.
· Strip vinyl curtains are also available as an option.
|Particle Efficiency||Above 99.99% Efficient On 0.3µm Particles|
|Pre-Filter||Non Woven Filter 600×300×12t x 1pc|
|Main Filter||HEPA Filter 610×610×50t x 1pc|
|Nozzles Qty||8pcs(Anti-Static PVC Nozzle)|
|Air Velocity (m/s)||Air Jet~Strong breeze Above 25|
|Air Volume (CMM)||Air Jet~Strong breeze Above 8.5 (Recirculation Air~Above 4)|
|Air Changes (hour)||Air Jet~Strong breeze Above 535 Times (Recirculation Air~Above 183 Times)|
|Construction||Coldrolled Steel With Bake Painting|
|Electrical||AC 3Φ220V 60Hz|
|Electric switch||Strong breeze sensor switch|
|Power Consumption (VA)||Air Jet~Strong breeze About 1020(Recirculation Air~About 290)|
