Cleanroom Air Shower(Portable Type)
Description


Mobile type, light weight, easy to move and install. Blow off the dust with the power of the high-speed jet.



·     High power air jet maintains 25m/s wind speed.


·     DC blowers saves 26% of the electricity cost than AC blowers.


·     Two wind speeds: circulating wind & strong wind.


·     The default is the cycle mode, and the enhanced cleaning mode blows strongly for 30 seconds.


·     Passed CE certification & UL certification.


·     Equipped with sensor that can start automatically without touching the switch.

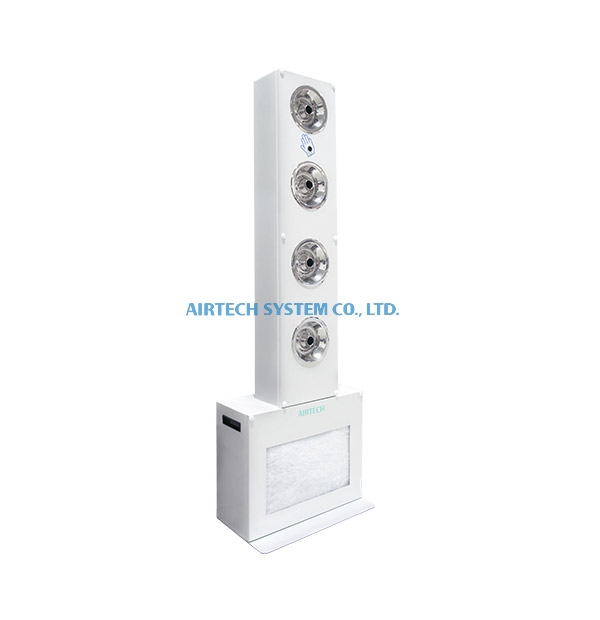

Model SS-ES04(DC)
Efficiency Above 99.97% Efficient On 0.3µm Particle
Pre-Filter Non-woven Filter, 250x400x10t x1pcs
Main Filter HEPA Filter ,200x950x65t x1pcs
Nozzles Qty. 4 Pcs (stainless steel sus nozzle)
Electrical AC 90~240V 1Φ 50/60Hz
Electrical Switches Power Switch (ON/OFF)
Contactless Switch for Air Jet
Air Velocity (m/s) Above 25
Air Volume (CMM) Air Jet: Above 4.2
Recirculation air: Above 1.6 (VR:30%)
Construction Cold-rolled Steel with Bake Painting
Painting Color Pearl White
Power Consumption About 225W
Weight About 35Kg
