Auto Door Air Shower
Description

The automatic opening function prevents cross-contamination and the dust on hand. It is with an interlock system and infrared sensor system.

·    Press the button at the entrance and the door will be automatically opened. (An infrared sensor switch is an available option.)

·    The door is fully opened.

·    The door is automatically closed when entered.


·     Automatically air showering with two doors interlocked.

·     The exit door is automatically opened once showering is done.

·     Upon personnel exits, the exit door will be automatically closed.

·     The automation mode and door type (single rail with both sides open, double rail with double side open) can be customized.

Model AAS-1410EARACM-2
Particle Efficiency Above 99.99% Efficient On 0.3µm Particles
Pre-Filter Non Woven Filter 600x300x12t x 4pcs
Main Filter HEPA Filter 915x762x50t x 4pcs
Nozzles Qty 44pcs
Air Changes (hour) Strong winds: Above 587/times, Recirculation winds: Above 210/times
Air Velocity (m/s) Air Jet: Above 30
Air Volume (CMM) Strong winds: Above 56, Recirculation winds: 20
Electrical Switches Air jet_auto_manual switch, Fan switch, Lighting switch, Photo-Electric sensor switch
Fan Brushless DC motor(NEF-6E) x 4set
Structure Coldrolled Steel With Bake Painting
Color Ivory
Electrical AC 3Φ220V 60Hz
Power Consumption(VA) Strong winds: 4400, Recircultaion winds: 1820
Interlocking Action Both doors are interlocked. When one door is opened, the other door is locked. In case of power failure, the door locks are automatically released for safe personnel exit.

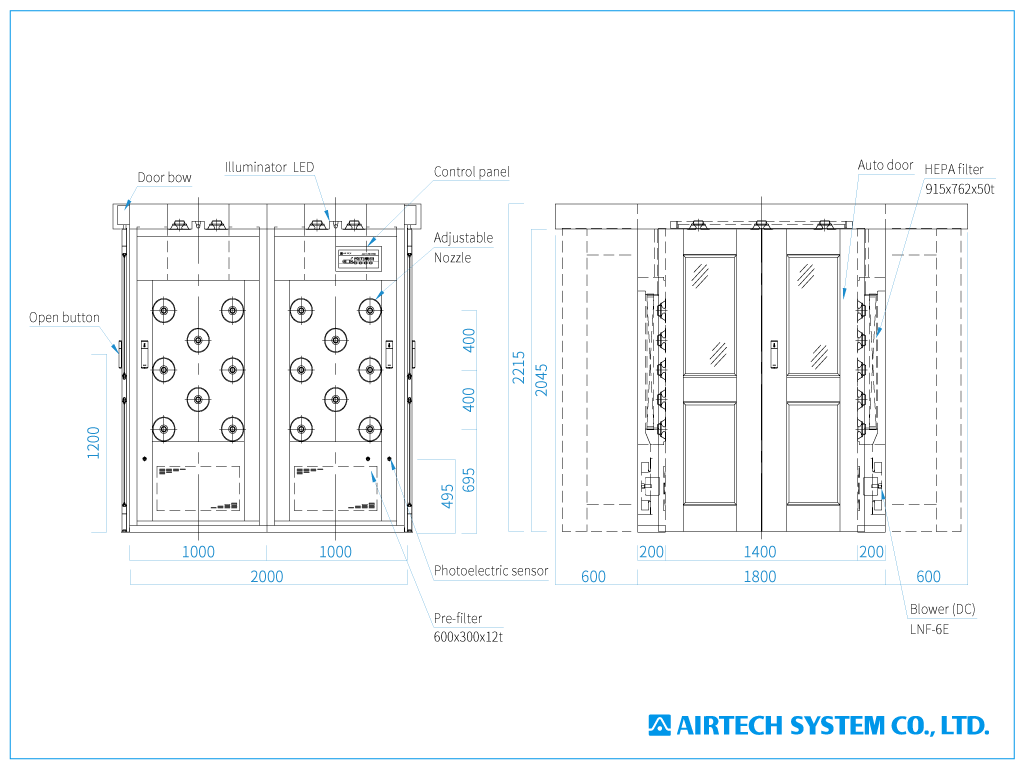

proimages/drawing/air-shower/auto_door_air_shower_1024x768px_en.png
