- Cleanroom Tunnel Type Air Shower

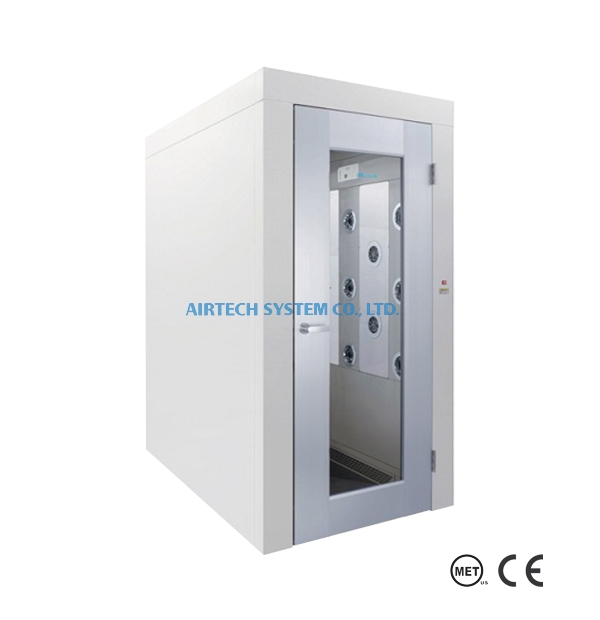

Cleanroom Tunnel Type Air Shower
· Our air showers are equipped with DC brushless motors and LED lights, thus ensuring low-power consumption and lower operating cost.
· AIRTECH’s space-saving design has enabled it to produce air showers with the smallest dimensions in the industry without compromising capacity and comfort.
· Our air showers are deployed with a proprietary and patented pulse jet nozzle that is highly effective and efficient in removing unwanted particles and contaminants.
· We look into every detail in designing our air showers; making sure form meets function. The best designs are then copyrighted and standardized, ensuring consistency across our products.
· The Language settings of our air showers are easily customizable. Voice instructions of the unit can be easily changed to a language of your preference.
· Our high-velocity exhaust system is capable of rapid decontamination and cleaning of the air shower after each use.
· The equipment automatically goes on energy-saving mode when it is on standby.
|Particle Efficiency||Above 99.99% Efficient On 0.3µm Particles|
|Pre-Filter||Non-Woven Filter 600×300×12 x 2pcs|
|Main Filter||HEPA Filter 915×762×50 x 1pc|
|Air Velocity (m/s)||Air Jet~Strong breeze Above 23|
|Air Volume (CMM)||Air Jet~Strong breeze Above 19.5 (Recirculation Air~Above 7)|
|Air Changes (hour)||Air Jet~Strong breeze Above 477 Times (Recirculation Air~Above 171 Times)|
|Construction||Cold-rolled Steel With Bake Painting|
|Electrical||AC 3Φ220V 60Hz|
|Power Consumption (VA)||Air Jet~Strong breeze About 800 (Recirculation Air~About 155)|
|Interlocking Action||Both doors are interlocked. When one door is opened, the other door is locked. In case of power failure, the door locks are automatically released for safe personnel exit.|
