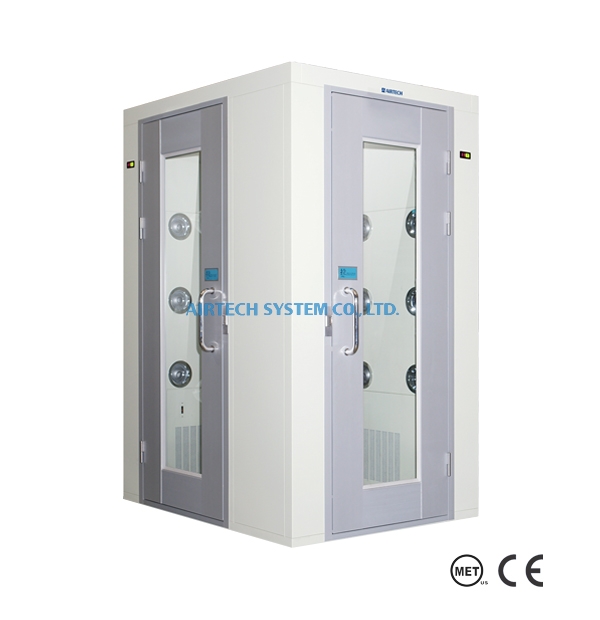

LT Shaped Air Shower

Our L-Type and T-Type air showers are for cleanroom layouts where the equipment’s entrance and exit doors are not located across from each other.

The L-Type air shower will have its two doors perpendicular to each other.

While the T-Type air shower can connect up to three doors and serve as a common antechamber.

These versatile units are the preferred choice for cleanroom retrofitting and renovation projects.

  • Our air showers are equipped with DC brushless motors and LED lights, thus ensuring low-power consumption and lower operating cost.
  • AIRTECH’s space-saving design has enabled it to produce air showers with the smallest dimensions in the industry without compromising capacity and comfort.
  • Our air showers are deployed with a proprietary and patented pulse jet nozzle that is highly effective and efficient in removing unwanted particles and contaminants.
  • We look into every detail in designing our air showers; making sure form meets function. The best designs are then copyrighted and standardized, ensuring consistency across our products.
  • The Language settings of our air showers are easily customizable. Voice instructions of the unit can be easily changed to a language of your preference.
  • Our high-velocity exhaust system is capable of rapid decontamination and cleaning of the air shower after each use.
  • The equipment automatically goes on energy-saving mode when it is on standby.

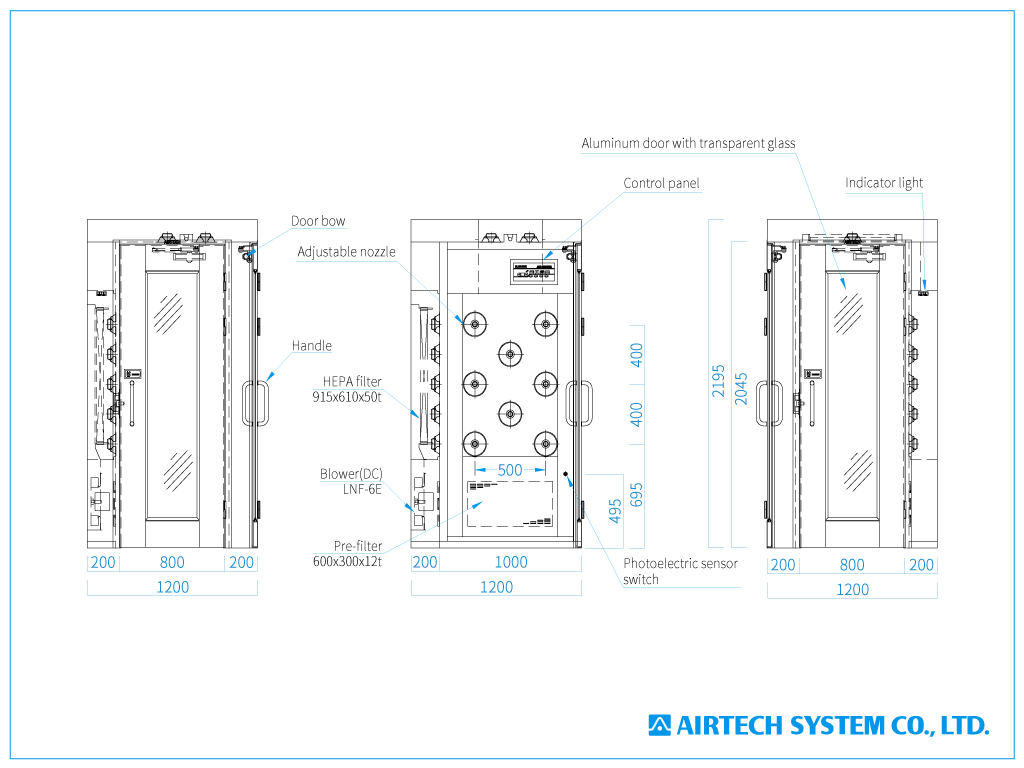

Model AAS-810EARCML-1.2
Particle Efficiency Above 99.99% Efficient On 0.3µm Particles
Pre-Filter Non Woven Filter 600×300×12t x 2pcs
Main Filter HEPA Filter 915×610×50t x 1pc
Nozzles Qty 18pcs(Anti-Static PVC Nozzle)
Air Velocity (m/s) Air Jet~Strong breeze Above 23
Air Volume (CMM) Air Jet~Strong breeze Above 17.5 (Recirculation Air~Above 6)
Air Changes (hour) Air Jet~Strong breeze Above 535 Times (Recirculation Air~Above 183 Times)
Construction Coldrolled Steel With Bake Painting
Color Ivory
Electrical AC 3Φ220V 60Hz
Power Consumption (VA) Air Jet~Strong breeze About 800(Recirculation Air~About 155)
Interlocking Action Both doors are interlocked. When one door is opened, the other door is locked. In case of power failure, the door locks are automatically released for safe personnel exit.
